Optimetrics setup

This example shows how to use PyAEDT to create a project in HFSS and create all optimetrics setups.

Keywords: AEDT, General, optimetrics.

Perform imports and define constants

Import the required packages.

import os
import tempfile
import time

import ansys.aedt.core

Define constants.

AEDT_VERSION = "2024.2"
NG_MODE = False  # Open AEDT UI when it is launched.

Create temporary directory

Create a temporary directory where downloaded data or dumped data can be stored. If you’d like to retrieve the project data for subsequent use, the temporary folder name is given by temp_folder.name.

temp_folder = tempfile.TemporaryDirectory(suffix=".ansys")

Initialize HFSS and create variables

Initialize the Hfss object and create two needed design variables, w1 and w2.

project_name = os.path.join(temp_folder.name, "optimetrics.aedt")

hfss = ansys.aedt.core.Hfss(
    project=project_name,
    version=AEDT_VERSION,
    new_desktop=True,
    non_graphical=NG_MODE,
    solution_type="Modal",
)

hfss["w1"] = "1mm"
hfss["w2"] = "100mm"

PyAEDT INFO: Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr  5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)]
PyAEDT INFO: PyAEDT version 0.12.dev0.
PyAEDT INFO: Initializing new Desktop session.
PyAEDT INFO: Log on console is enabled.
PyAEDT INFO: Log on file C:\Users\ansys\AppData\Local\Temp\pyaedt_ansys_856165e7-8f72-4b1a-80fa-0e096935a90f.log is enabled.
PyAEDT INFO: Log on AEDT is enabled.
PyAEDT INFO: Debug logger is disabled. PyAEDT methods will not be logged.
PyAEDT INFO: Launching PyAEDT with gRPC plugin.
PyAEDT INFO: New AEDT session is starting on gRPC port 54967
PyAEDT INFO: AEDT installation Path C:\Program Files\AnsysEM\v242\Win64
PyAEDT INFO: Ansoft.ElectronicsDesktop.2024.2 version started with process ID 4488.
PyAEDT INFO: Project optimetrics has been created.
PyAEDT INFO: No design is present. Inserting a new design.
PyAEDT INFO: Added design 'HFSS_FGD' of type HFSS.
PyAEDT INFO: Aedt Objects correctly read

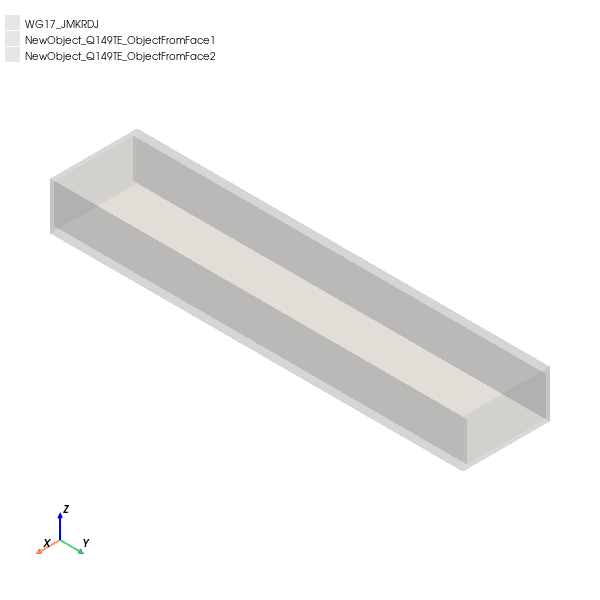

Create waveguide with sheets on it

Create one of the standard waveguide structures and parametrize it. You can also create rectangles of waveguide openings and assign ports later.

wg1, p1, p2 = hfss.modeler.create_waveguide(
    [0, 0, 0],
    hfss.AXIS.Y,
    "WG17",
    wg_thickness="w1",
    wg_length="w2",
    create_sheets_on_openings=True,
)

model = hfss.plot(show=False)

model.show_grid = False
model.plot(os.path.join(hfss.working_directory, "Image.jpg"))

PyAEDT INFO: Modeler class has been initialized! Elapsed time: 0m 1sec
PyAEDT INFO: Materials class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: Parsing design objects. This operation can take time
PyAEDT INFO: Parsing C:/Users/ansys/AppData/Local/Temp/tmpw285dfhi.ansys/optimetrics.aedt.
PyAEDT INFO: File C:/Users/ansys/AppData/Local/Temp/tmpw285dfhi.ansys/optimetrics.aedt correctly loaded. Elapsed time: 0m 0sec
PyAEDT INFO: aedt file load time 0.015256166458129883
PyAEDT INFO: 3D Modeler objects parsed. Elapsed time: 0m 0sec
PyAEDT INFO: PostProcessor class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: Post class has been initialized! Elapsed time: 0m 0sec

C:\actions-runner\_work\pyaedt-examples\pyaedt-examples\.venv\lib\site-packages\pyvista\jupyter\notebook.py:37: UserWarning: Failed to use notebook backend:

No module named 'trame'

Falling back to a static output.
  warnings.warn(

True

Create wave ports on sheets

Create two wave ports on the sheets.

hfss.wave_port(p1, integration_line=hfss.AxisDir.ZPos, name="1")
hfss.wave_port(p2, integration_line=hfss.AxisDir.ZPos, name="2")

PyAEDT INFO: Boundary Wave Port 1 has been correctly created.
PyAEDT INFO: Boundary Wave Port 2 has been correctly created.

<ansys.aedt.core.modules.boundary.BoundaryObject at 0x20f438a7970>

Create setup and frequency sweep

Create a setup and a frequency sweep to use as the base for optimetrics setups.

setup = hfss.create_setup()
hfss.create_linear_step_sweep(
    setup=setup.name,
    unit="GHz",
    start_frequency=1,
    stop_frequency=5,
    step_size=0.1,
    name="Sweep1",
    save_fields=True,
)

PyAEDT INFO: Linear step sweep Sweep1 has been correctly created

<ansys.aedt.core.modules.solve_sweeps.SweepHFSS at 0x20f3f69a530>

Create optimetrics analyses

Create parametric analysis

Create a simple optimetrics parametrics analysis with output calculations.

sweep = hfss.parametrics.add("w2", 90, 200, 5)
sweep.add_variation("w1", 0.1, 2, 10)
sweep.add_calculation(calculation="dB(S(1,1))", ranges={"Freq": "2.5GHz"})
sweep.add_calculation(calculation="dB(S(1,1))", ranges={"Freq": "2.6GHz"})

True

Create sensitivity analysis

Create an optimetrics sensitivity analysis with output calculations.

sweep2 = hfss.optimizations.add(
    calculation="dB(S(1,1))", ranges={"Freq": "2.5GHz"}, optimization_type="Sensitivity"
)
sweep2.add_variation("w1", 0.1, 3, 0.5)
sweep2.add_calculation(calculation="dB(S(1,1))", ranges={"Freq": "2.6GHz"})

True

Create an optimization analysis

Create an optimization analysis based on goals and calculations.

sweep3 = hfss.optimizations.add(calculation="dB(S(1,1))", ranges={"Freq": "2.5GHz"})
sweep3.add_variation("w1", 0.1, 3, 0.5)
sweep3.add_goal(calculation="dB(S(1,1))", ranges={"Freq": "2.6GHz"})
sweep3.add_goal(calculation="dB(S(1,1))", ranges={"Freq": ("2.6GHz", "5GHz")})
sweep3.add_goal(
    calculation="dB(S(1,1))",
    ranges={"Freq": ("2.6GHz", "5GHz")},
    condition="Maximize",
)

True

Create a DesignXplorer optimization

Create a DesignXplorer optimization based on a goal and a calculation.

sweep4 = hfss.optimizations.add(
    calculation="dB(S(1,1))",
    ranges={"Freq": "2.5GHz"},
    optimization_type="DesignExplorer",
)
sweep4.add_goal(calculation="dB(S(1,1))", ranges={"Freq": "2.6GHz"})

True

Create a Design of Experiments (DOE)

Create a DOE based on a goal and a calculation.

sweep5 = hfss.optimizations.add(
    calculation="dB(S(1,1))", ranges={"Freq": "2.5GHz"}, optimization_type="DXDOE"
)

Create another DOE

Create another DOE based on a goal and a calculation.

region = hfss.modeler.create_region()
hfss.assign_radiation_boundary_to_objects(region)
hfss.insert_infinite_sphere(name="Infinite_1")
sweep6 = hfss.optimizations.add(
    calculation="RealizedGainTotal",
    solution=hfss.nominal_adaptive,
    ranges={"Freq": "5GHz", "Theta": ["0deg", "10deg", "20deg"], "Phi": "0deg"},
    context="Infinite_1",
)

PyAEDT INFO: Boundary Radiation Rad__M0C29P has been correctly created.

Release AEDT

hfss.save_project()
hfss.release_desktop()
time.sleep(3)  # Allow AEDT to shut down before cleaning the temporary project folder.

PyAEDT INFO: Project optimetrics Saved correctly
PyAEDT INFO: Desktop has been released and closed.

Clean up

All project files are saved in the folder temp_folder.name. If you’ve run this example as a Jupyter notebook, you can retrieve those project files. The following cell removes all temporary files, including the project folder.

temp_folder.cleanup()

---
