DC IR analysis#
This example shows how to configure EDB for DC IR analysis and load EDB into the HFSS 3D Layout UI for analysis and postprocessing.
Set up EDB:
Edit via padstack.
Assign SPICE model to components.
Create pin groups.
Create voltage and current sources.
Create SIwave DC analysis.
Create cutout.
Import EDB into HFSS 3D Layout:
Analyze.
Get DC IR analysis results.
Keywords: HFSS 3D Layout, DC IR.
Perform imports and define constants#
Perform required imports.
[ ]:
import json
import os
import tempfile
import time
[ ]:
import ansys.aedt.core
from ansys.aedt.core.examples.downloads import download_file
from pyedb import Edb
Define constants.
[ ]:
AEDT_VERSION = "2025.1"
NUM_CORES = 4
NG_MODE = False # Open AEDT UI when it is launched.
Download example board.
[ ]:
temp_folder = tempfile.TemporaryDirectory(suffix=".ansys")
aedb = download_file(source="edb/ANSYS-HSD_V1.aedb", local_path=temp_folder.name)
_ = download_file(
source="spice", name="ferrite_bead_BLM15BX750SZ1.mod", local_path=temp_folder.name
)
Create configuration file#
This example uses a configuration file to set up the layout for analysis. Initialize and create an empty dictionary to host all configurations.
[ ]:
cfg = dict()
Define model library paths.
[ ]:
cfg["general"] = {
"s_parameter_library": os.path.join(temp_folder.name, "touchstone"),
"spice_model_library": os.path.join(temp_folder.name, "spice"),
}
Change via hole size and plating thickness#
[ ]:
cfg["padstacks"] = {
"definitions": [
{"name": "v40h15-3", "hole_diameter": "0.2mm", "hole_plating_thickness": "25um"}
],
}
Assign SPICE models#
[ ]:
cfg["spice_models"] = [
{
"name": "ferrite_bead_BLM15BX750SZ1", # Give a name to the SPICE Mode.
"component_definition": "COIL-1008CS_V", # Part name of the components
"file_path": "ferrite_bead_BLM15BX750SZ1.mod", # File name or full file path to the SPICE file.
"sub_circuit_name": "BLM15BX750SZ1",
"apply_to_all": True, # If True, SPICE model is to be assigned to all components share the same part name.
# If False, only assign SPICE model to components in "components".
"components": [],
}
]
Create voltage source#
Create a voltage source from a net.
[ ]:
cfg["sources"] = [
{
"name": "VSOURCE_5V",
"reference_designator": "U4",
"type": "voltage",
"magnitude": 5,
"positive_terminal": {"net": "5V"},
"negative_terminal": {"net": "GND"},
}
]
Create current sources#
Create current sources between the net and pin group.
[ ]:
cfg["pin_groups"] = [{"name": "J5_GND", "reference_designator": "J5", "net": "GND"}]
[ ]:
cfg["sources"].append(
{
"name": "J5_VCCR",
"reference_designator": "J5",
"type": "current",
"magnitude": 0.5,
"positive_terminal": {"net": "SFPA_VCCR"},
"negative_terminal": {
"pin_group": "J5_GND" # Defined in "pin_groups" section.
},
}
)
cfg["sources"].append(
{
"name": "J5_VCCT",
"reference_designator": "J5",
"type": "current",
"magnitude": 0.5,
"positive_terminal": {"net": "SFPA_VCCT"},
"negative_terminal": {
"pin_group": "J5_GND" # Defined in "pin_groups" section.
},
}
)
Create SIwave DC analysis#
[ ]:
cfg["setups"] = [{"name": "siwave_dc", "type": "siwave_dc", "dc_slider_position": 0}]
Define cutout#
[ ]:
cfg["operations"] = {
"cutout": {
"signal_list": ["SFPA_VCCR", "SFPA_VCCT", "5V"],
"reference_list": ["GND"],
"extent_type": "ConvexHull",
"expansion_size": 0.002,
"use_round_corner": False,
"output_aedb_path": "",
"open_cutout_at_end": True,
"use_pyaedt_cutout": True,
"number_of_threads": 4,
"use_pyaedt_extent_computing": True,
"extent_defeature": 0,
"remove_single_pin_components": False,
"custom_extent": "",
"custom_extent_units": "mm",
"include_partial_instances": False,
"keep_voids": True,
"check_terminals": False,
"include_pingroups": False,
"expansion_factor": 0,
"maximum_iterations": 10,
"preserve_components_with_model": False,
"simple_pad_check": True,
"keep_lines_as_path": False,
}
}
Save configuration as a JSON file#
[ ]:
pi_json = os.path.join(temp_folder.name, "pi.json")
with open(pi_json, "w") as f:
json.dump(cfg, f, indent=4, ensure_ascii=False)
Load configuration into EDB#
Load the configuration from the JSON file into EDB.
[ ]:
edbapp = Edb(aedb, edbversion=AEDT_VERSION)
edbapp.configuration.load(config_file=pi_json)
edbapp.configuration.run()
[ ]:
# # Load configuration into EDB

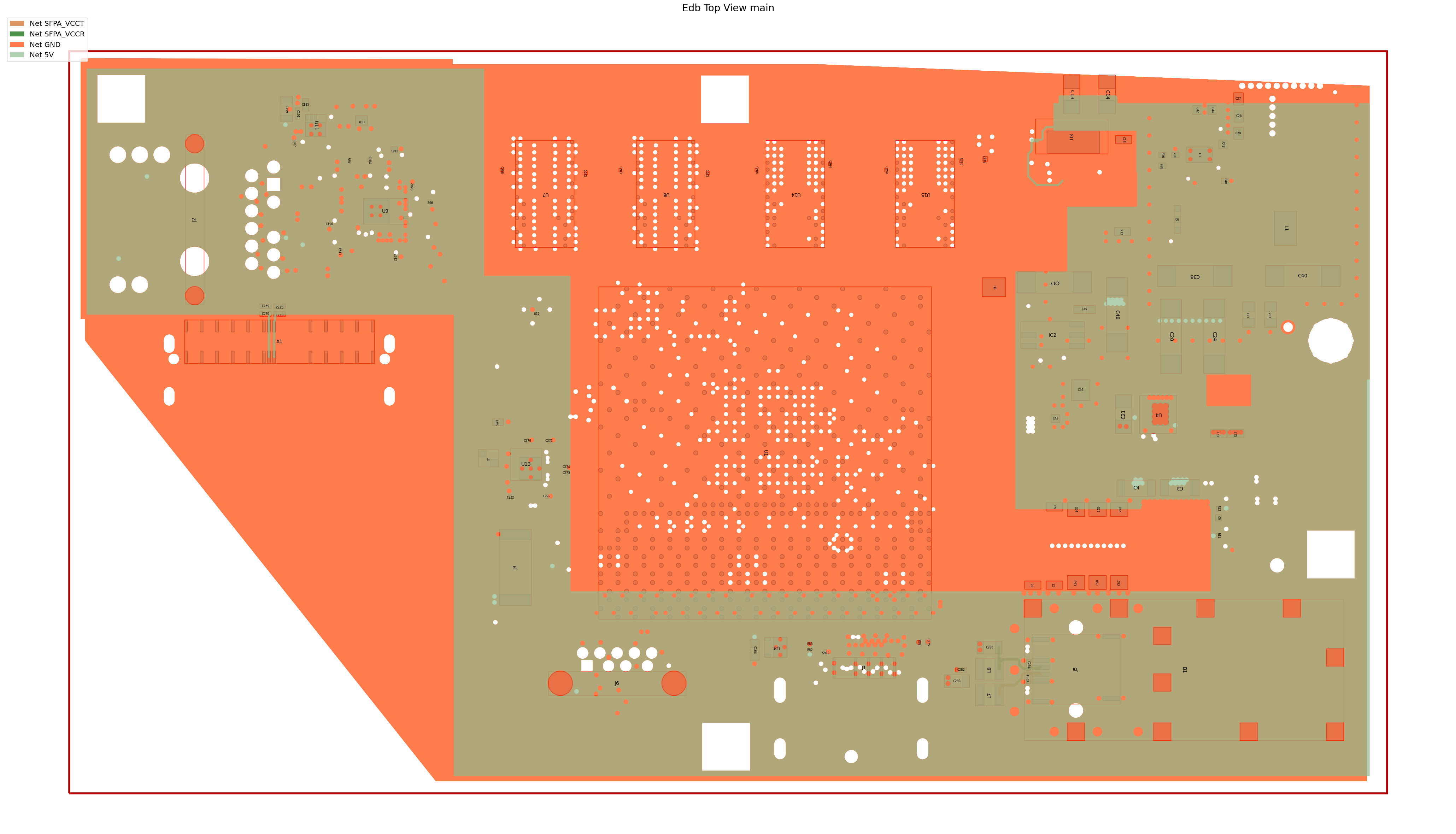

edbapp.nets.plot(None, None, color_by_net=True)
Save and close EDB#
[ ]:
edbapp.save()
edbapp.close()
The configured EDB file is saved in the temporary folder.
[ ]:
print(temp_folder.name)
Analyze DCIR with SIwave#
The HFSS 3D Layout interface to SIwave is used to open the EDB and run the DCIR analysis using SIwave
Load EDB into HFSS 3D Layout.#
[ ]:
siw = ansys.aedt.core.Hfss3dLayout(
aedb, version=AEDT_VERSION, non_graphical=NG_MODE, new_desktop=True
)
Analyze#
[ ]:
siw.analyze(cores=NUM_CORES)
Get DC IR results#
[ ]:
siw.get_dcir_element_data_current_source("siwave_dc")
Release AEDT#
[ ]:
siw.save_project()
siw.release_desktop()
# Wait 3 seconds to allow AEDT to shut down before cleaning the temporary directory.
time.sleep(3)
Clean up#
All project files are saved in the folder temp_folder.name
. If you’ve run this example as a Jupyter notebook, you can retrieve those project files. The following cell removes all temporary files, including the project folder.
[ ]:
temp_folder.cleanup()
