Transient winding analysis

This example shows how to use PyAEDT to create a project in Maxwell 2D and run a transient simulation. It runs only on Windows using CPython.

The following libraries are required for the advanced postprocessing features used in this example:

• Matplotlib

• Numpy

• PyVista

Install these libraries with this command:

pip install numpy pyvista matplotlib

Keywords: Maxwell 2D, transient, winding.

Perform imports and define constants

Perform required imports.

import os
import tempfile
import time

import ansys.aedt.core

Define constants.

AEDT_VERSION = "2024.2"
NUM_CORES = 4
NG_MODE = False  # Open AEDT UI when it is launched.

Create temporary directory

Create a temporary directory where downloaded data or dumped data can be stored. If you’d like to retrieve the project data for subsequent use, the temporary folder name is given by temp_folder.name.

temp_folder = tempfile.TemporaryDirectory(suffix=".ansys")

Insert Maxwell 2D design

project_name = os.path.join(temp_folder.name, "Transient.aedt")
m2d = ansys.aedt.core.Maxwell2d(
    solution_type="TransientXY",
    version=AEDT_VERSION,
    non_graphical=NG_MODE,
    new_desktop=True,
    project=project_name,
)

PyAEDT INFO: Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr  5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)]
PyAEDT INFO: PyAEDT version 0.12.dev0.
PyAEDT INFO: Initializing new Desktop session.
PyAEDT INFO: Log on console is enabled.
PyAEDT INFO: Log on file C:\Users\ansys\AppData\Local\Temp\pyaedt_ansys_632b6536-14a8-4976-850e-34ec794fda6d.log is enabled.
PyAEDT INFO: Log on AEDT is enabled.
PyAEDT INFO: Debug logger is disabled. PyAEDT methods will not be logged.
PyAEDT INFO: Launching PyAEDT with gRPC plugin.
PyAEDT INFO: New AEDT session is starting on gRPC port 53595
PyAEDT INFO: AEDT installation Path C:\Program Files\AnsysEM\v242\Win64
PyAEDT INFO: Ansoft.ElectronicsDesktop.2024.2 version started with process ID 5668.
PyAEDT INFO: Project Transient has been created.
PyAEDT INFO: No design is present. Inserting a new design.
PyAEDT INFO: Added design 'Maxwell 2D_KBI' of type Maxwell 2D.
PyAEDT INFO: Aedt Objects correctly read

Create rectangle and duplicate it

rect1 = m2d.modeler.create_rectangle(
    origin=[0, 0, 0], sizes=[10, 20], name="winding", material="copper"
)
duplicate = rect1.duplicate_along_line(vector=[14, 0, 0])
rect2 = m2d.modeler[duplicate[0]]

PyAEDT INFO: Modeler2D class has been initialized!
PyAEDT INFO: Modeler class has been initialized! Elapsed time: 0m 1sec
PyAEDT INFO: Materials class has been initialized! Elapsed time: 0m 0sec

Create air region

Create an air region.

region = m2d.modeler.create_region([100, 100, 100, 100])

Assign windings and balloon

Assigns windings to the sheets and a balloon to the air region.

m2d.assign_winding(
    assignment=[rect1.name, rect2.name], current="1*sin(2*pi*50*Time)", name="PHA"
)
m2d.assign_balloon(assignment=region.edges)

<ansys.aedt.core.modules.boundary.BoundaryObject at 0x2bd5e856560>

Create transient setup

setup = m2d.create_setup()
setup.props["StopTime"] = "0.02s"
setup.props["TimeStep"] = "0.0002s"
setup.props["SaveFieldsType"] = "Every N Steps"
setup.props["N Steps"] = "1"
setup.props["Steps From"] = "0s"
setup.props["Steps To"] = "0.002s"

Create rectangular plot

m2d.post.create_report(
    expressions="InputCurrent(PHA)",
    domain="Sweep",
    primary_sweep_variable="Time",
    plot_name="Winding Plot 1",
)

PyAEDT INFO: Parsing C:/Users/ansys/AppData/Local/Temp/tmpggp26jhm.ansys/Transient.aedt.
PyAEDT INFO: File C:/Users/ansys/AppData/Local/Temp/tmpggp26jhm.ansys/Transient.aedt correctly loaded. Elapsed time: 0m 0sec
PyAEDT INFO: aedt file load time 0.0
PyAEDT INFO: PostProcessor class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: Post class has been initialized! Elapsed time: 0m 0sec

<ansys.aedt.core.visualization.report.standard.Standard at 0x2bd62822ce0>

Solve model

m2d.analyze(cores=NUM_CORES, use_auto_settings=False)

PyAEDT INFO: Key Desktop/ActiveDSOConfigurations/Maxwell 2D correctly changed.
PyAEDT INFO: Solving all design setups.
PyAEDT INFO: Key Desktop/ActiveDSOConfigurations/Maxwell 2D correctly changed.
PyAEDT INFO: Design setup None solved correctly in 0.0h 0.0m 14.0s

True

Create output and plot using PyVista

cutlist = ["Global:XY"]
face_lists = rect1.faces
face_lists += rect2.faces
timesteps = [str(i * 2e-4) + "s" for i in range(11)]
id_list = [f.id for f in face_lists]

gif = m2d.post.plot_animated_field(
    quantity="Mag_B",
    assignment=id_list,
    plot_type="Surface",
    intrinsics={"Time": "0s"},
    variation_variable="Time",
    variations=timesteps,
    show=False,
    export_gif=False,
)
gif.isometric_view = False
gif.camera_position = [15, 15, 80]
gif.focal_point = [15, 15, 0]
gif.roll_angle = 0
gif.elevation_angle = 0
gif.azimuth_angle = 0

# Set off_screen to False to visualize the animation.
# gif.off_screen = False
gif.animate()

C:\actions-runner\_work\pyaedt-examples\pyaedt-examples\.venv\lib\site-packages\pyvista\jupyter\notebook.py:37: UserWarning: Failed to use notebook backend:

No module named 'trame'

Falling back to a static output.
  warnings.warn(

True

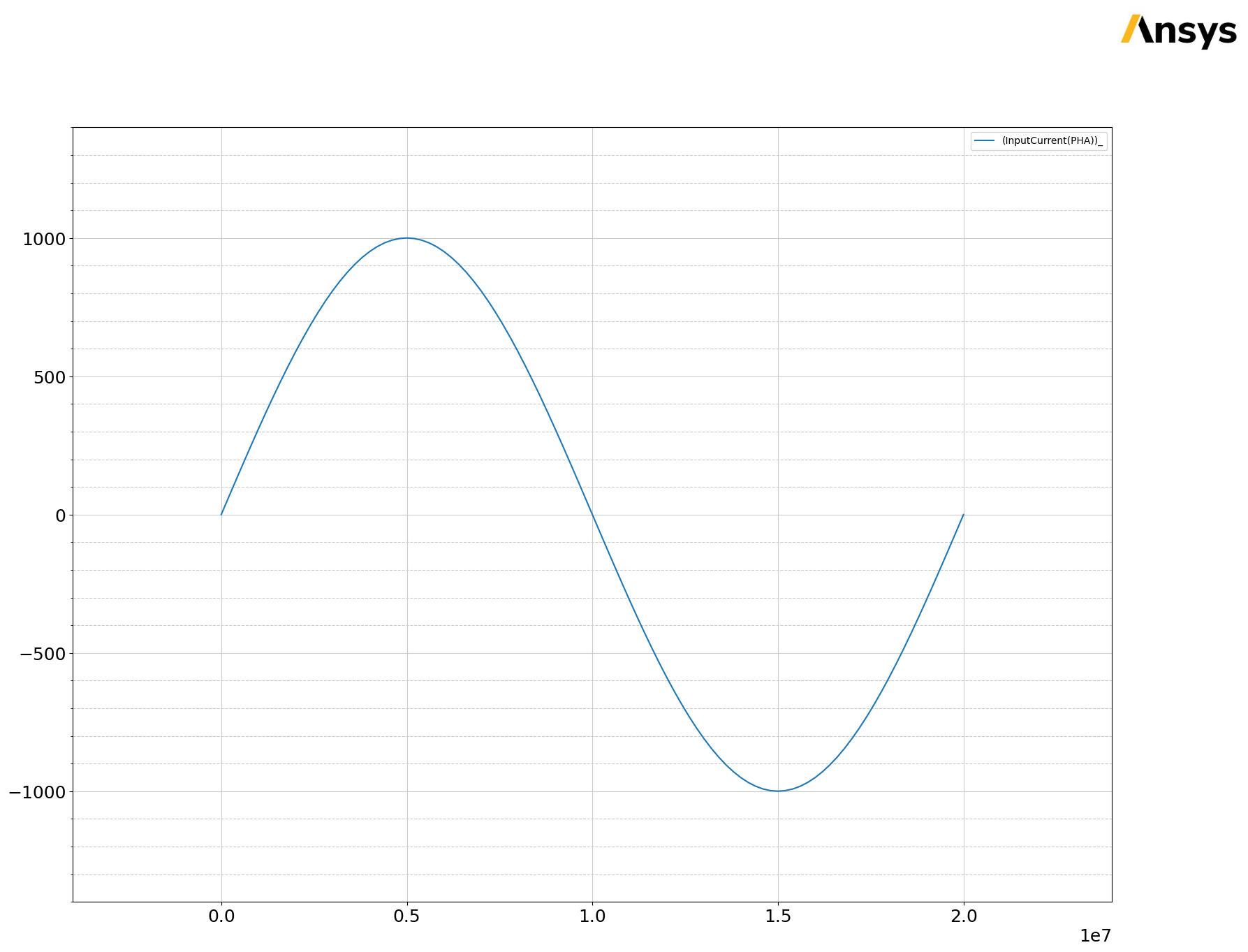

Generate plot outside of AEDT

Generate the same plot outside AEDT.

solutions = m2d.post.get_solution_data(
    expressions="InputCurrent(PHA)", primary_sweep_variable="Time"
)
solutions.plot()

PyAEDT INFO: Solution Data Correctly Loaded.

C:\actions-runner\_work\pyaedt-examples\pyaedt-examples\.venv\lib\site-packages\ansys\aedt\core\visualization\plot\matplotlib.py:407: RuntimeWarning: invalid value encountered in divide
  theta = np.arccos(z / r) * 180 / math.pi  # to degrees

Release AEDT

m2d.save_project()
m2d.release_desktop()
# Wait 3 seconds to allow AEDT to shut down before cleaning the temporary directory.
time.sleep(3)

PyAEDT INFO: Project Transient Saved correctly
PyAEDT INFO: Desktop has been released and closed.

Clean up

All project files are saved in the folder temp_folder.name. If you’ve run this example as a Jupyter notebook, you can retrieve those project files. The following cell removes all temporary files, including the project folder.

temp_folder.cleanup()

---
