Import Ports#

This example shows how to import operations. In this example, we are going to

  • Download an example board

  • Create a configuration file

    • Add a cutout operation

  • Import the configuration file

Import the required packages#

[1]:

import json
import toml
from pathlib import Path
import tempfile

from ansys.aedt.core.examples.downloads import download_file

from pyedb import Edb

AEDT_VERSION = "2025.1"
NG_MODE = False

Download the example PCB data.

[2]:

temp_folder = tempfile.TemporaryDirectory(suffix=".ansys")
file_edb = download_file(source="edb/ANSYS-HSD_V1.aedb", local_path=temp_folder.name)

Load example layout and place ports#

[3]:

edbapp = Edb(file_edb, edbversion=AEDT_VERSION)
ports = [
    {
        "name": "Port_U1_P",
        "reference_designator": "U1",
        "positive_terminal": {
            "net": "PCIe_Gen4_TX3_CAP_P"
        },
        "negative_terminal": {
            "net": "GND"
        },
        "type": "circuit"
    },
    {
        "name": "Port_U1_N",
        "reference_designator": "U1",
        "positive_terminal": {
            "net": "PCIe_Gen4_TX3_CAP_N"
        },
        "negative_terminal": {
            "net": "GND"
        },
        "type": "circuit"
    },
    {
        "name": "Port_X1_P",
        "reference_designator": "X1",
        "positive_terminal": {
            "net": "PCIe_Gen4_TX3_P"
        },
        "negative_terminal": {
            "net": "GND"
        },
        "type": "circuit"
    },
    {
        "name": "Port_X1_N",
        "reference_designator": "X1",
        "positive_terminal": {
            "net": "PCIe_Gen4_TX3_N"
        },
        "negative_terminal": {
            "net": "GND"
        },
        "type": "circuit"
    }
]
cfg_1 = {"ports": ports}

PyAEDT INFO: Logger is initialized in EDB.
PyAEDT INFO: legacy v0.50.1
PyAEDT INFO: Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr  5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)]
PyAEDT INFO: Database ANSYS-HSD_V1.aedb Opened in 2025.1
PyAEDT INFO: Cell main Opened
PyAEDT INFO: Builder was initialized.
PyAEDT INFO: EDB initialized.

[4]:

edbapp.configuration.load(cfg_1)
edbapp.configuration.run()
edbapp.save()
edb_path = edbapp.edbpath
edbapp.close()

PyAEDT INFO: EDB file save time: 0.00ms
PyAEDT INFO: EDB file release time: 0.00ms

[4]:

True

Cutout by nets#

Keywords

  • reference_list. List of reference nets.

  • Extent_type. Supported types are Conforming, ConvexHull, and Bounding.

  • signal_list. List of signal nets to keep.

  • expansion_size. Expansion size ratio in meters. The default is 0.002.

  • use_round_corner. Whether to use round corners. Defaults to False.

  • number_of_threads. Number of threads to use. Defaults to 4.

  • extent_defeature. Simplifies geometry before applying cutout to aid meshing. Only applies to Conforming bounding box. Defaults to 0 (disabled).

  • remove_single_pin_components. Removes all single-pin RLCs after cutout. Defaults to False.

  • custom_extent. List of points defining the custom cutout shape. Overrides the extent_type setting.

  • custom_extent_units. Units of the custom extent points. Defaults to "mm". Only valid if custom_extent is provided.

  • include_partial_instances. Includes padstacks with bounding boxes intersecting the custom shape. May slow down export. Only valid with custom_extent and use_pyaedt_cutout.

  • keep_voids. Whether to keep voids intersecting the cutout polygon. Defaults to True. Valid only if custom_extent is provided.

  • check_terminals. Expands extent to include reference terminals of components with associated models.

  • include_pingroups. Includes terminals of pingroups. Requires check_terminals to be True.

  • expansion_factor. Computes the maximum between dielectric thickness and trace width (for nets with ports) multiplied by this factor. Defaults to 0 (disabled). Works only with use_pyaedt_cutout.

  • maximum_iterations. Maximum number of iterations allowed for cutout search. Defaults to 10.

  • preserve_components_with_model. Preserves all pins of components with associated models (Spice or NPort). Only applicable for PyAEDT cutouts (excluding point list).

  • simple_pad_check. Uses pad center for intersection detection instead of bounding box. Defaults to True. Bounding box method is slower and disables multithreading.

  • keep_lines_as_path. Keeps lines as Path instead of converting to PolygonData. Only works in Electronics Desktop (3D Layout). May cause issues in SiWave. Defaults to False.

  • include_voids_in_extents. Includes voids in the computed extent (for Conforming only). May affect performance. Defaults to False.

[5]:

cutout = {
    "reference_list": ["GND"],
    "extent_type": "ConvexHull",
    "signal_list": [
        "PCIe_Gen4_TX3_CAP_P",
        "PCIe_Gen4_TX3_CAP_N",
        "PCIe_Gen4_TX3_P",
        "PCIe_Gen4_TX3_N"
    ]
}
operations = {"cutout": cutout}
cfg = {"operations": operations}

Write configuration into as json file

[6]:

file_json = Path(temp_folder.name) / "cutout_1.json"
with open(file_json, "w") as f:
    json.dump(cfg, f, indent=4, ensure_ascii=False)

Equivalent toml file looks like below

[7]:

toml_string = toml.dumps(cfg)
print(toml_string)

[operations.cutout]
reference_list = [ "GND",]
extent_type = "ConvexHull"
signal_list = [ "PCIe_Gen4_TX3_CAP_P", "PCIe_Gen4_TX3_CAP_N", "PCIe_Gen4_TX3_P", "PCIe_Gen4_TX3_N",]

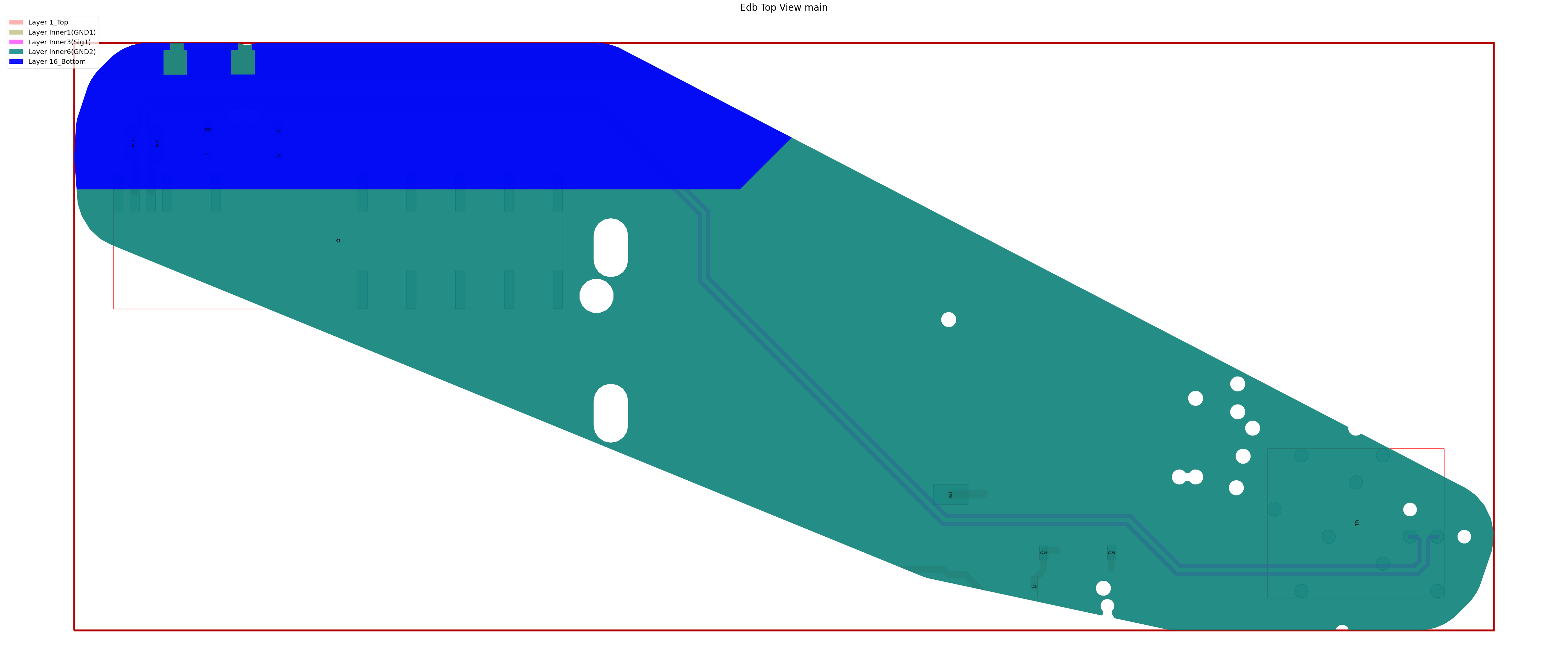

Apply cutout

[8]:

edbapp = Edb(edb_path, edbversion=AEDT_VERSION)
edbapp.configuration.load(config_file=file_json)
edbapp.configuration.run()
edbapp.nets.plot()
edbapp.close()

PyAEDT INFO: Logger is initialized in EDB.
PyAEDT INFO: legacy v0.50.1
PyAEDT INFO: Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr  5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)]
PyAEDT INFO: Database ANSYS-HSD_V1.aedb Opened in 2025.1
PyAEDT INFO: Cell main Opened
PyAEDT INFO: Builder was initialized.
PyAEDT INFO: EDB initialized.
PyAEDT INFO: Cutout Multithread started.
PyAEDT INFO: Net clean up Elapsed time: 0m 2sec
PyAEDT INFO: Extent Creation Elapsed time: 0m 0sec
PyAEDT INFO: 1982 Padstack Instances deleted. Elapsed time: 0m 1sec
PyAEDT INFO: 443 Primitives deleted. Elapsed time: 0m 4sec
PyAEDT INFO: 984 components deleted
PyAEDT INFO: Cutout completed. Elapsed time: 0m 7sec
../../../_images/examples_00_edb_use_configuration_import_operations_16_1.png
PyAEDT INFO: Plot Generation time 1.188
PyAEDT INFO: EDB file release time: 0.00ms

[8]:

True

Cutout with auto net identification#

Keywords

  • auto_identify_nets. Identify nets connected to ports

    • enabled. Resistance threshold. Resistor with value below this threshold is considered as short circuit

    • resistor_below. Resistance threshold. Resistor with value below this threshold is considered as short circuit

    • inductor_below. Inductor threshold. Inductor with value below this threshold is considered as short circuit

    • capacitor_above. Capacitor threshold. Capacitor with value below this threshold is considered as short circuit

[9]:

cutout = {
    "auto_identify_nets": {
            "enabled": True,
            "resistor_below": 100,
            "inductor_below": 1,
            "capacitor_above": 1
        },
    "reference_list": ["GND"],
    "extent_type": "ConvexHull"
}
operations = {"cutout": cutout}
cfg = {"operations": operations}

Write configuration into as json file

[10]:

file_json = Path(temp_folder.name) / "cutout_2.json"
with open(file_json, "w") as f:
    json.dump(cfg, f, indent=4, ensure_ascii=False)

Equivalent toml file looks like below

[11]:

toml_string = toml.dumps(cfg)
print(toml_string)

[operations.cutout]
reference_list = [ "GND",]
extent_type = "ConvexHull"

[operations.cutout.auto_identify_nets]
enabled = true
resistor_below = 100
inductor_below = 1
capacitor_above = 1

Apply cutout

[12]:

edbapp = Edb(edb_path, edbversion=AEDT_VERSION)
edbapp.configuration.load(config_file=file_json)
edbapp.configuration.run()
edbapp.nets.plot()
edbapp.close()

PyAEDT INFO: Logger is initialized in EDB.
PyAEDT INFO: legacy v0.50.1
PyAEDT INFO: Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr  5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)]
PyAEDT INFO: Database ANSYS-HSD_V1.aedb Opened in 2025.1
PyAEDT INFO: Cell main Opened
PyAEDT INFO: Builder was initialized.
PyAEDT INFO: EDB initialized.
PyAEDT INFO: Cutout Multithread started.
PyAEDT INFO: Net clean up Elapsed time: 0m 1sec
PyAEDT INFO: Extent Creation Elapsed time: 0m 0sec
PyAEDT INFO: 1982 Padstack Instances deleted. Elapsed time: 0m 1sec
PyAEDT INFO: 443 Primitives deleted. Elapsed time: 0m 4sec
PyAEDT INFO: 984 components deleted
PyAEDT INFO: Cutout completed. Elapsed time: 0m 6sec
../../../_images/examples_00_edb_use_configuration_import_operations_25_1.png
PyAEDT INFO: Plot Generation time 1.109
PyAEDT INFO: EDB file release time: 15.62ms

[12]:

True
