Set up EDB for Serdes channel S-parameter extraction#
Perform imports and define constants#
Perform required imports.
[1]:
import json
import os
import tempfile
from ansys.aedt.core import Hfss3dLayout
from ansys.aedt.core.examples.downloads import download_file
from pyedb import Edb
Define constants.
[2]:
AEDT_VERSION = "2025.2"
NG_MODE = False
Download the example PCB data.
[3]:
temp_folder = tempfile.TemporaryDirectory(suffix=".ansys")
file_edb = download_file(source="edb/ANSYS-HSD_V1.aedb", local_path=temp_folder.name)
download_file(source="touchstone", name="GRM32_DC0V_25degC_series.s2p", local_path=os.path.split(file_edb)[0])
[3]:
'C:\\Users\\ansys\\AppData\\Local\\Temp\\tmp1m5vjiea.ansys\\edb\\touchstone\\GRM32_DC0V_25degC_series.s2p'
Load example layout#
[4]:
edbapp = Edb(file_edb, edbversion=AEDT_VERSION)
C:\actions-runner\_work\pyaedt-examples\pyaedt-examples\.venv\lib\site-packages\pyedb\misc\decorators.py:33: UserWarning: Argument `edbversion` is deprecated for method `Edb`; use `version` instead.
warnings.warn(
C:\actions-runner\_work\pyaedt-examples\pyaedt-examples\.venv\lib\site-packages\pyedb\generic\design_types.py:327: UserWarning: Your ANSYS AEDT version is eligible to gRPC version.You might consider switching to that version for better user experience.For more information please check this link: https://edb.docs.pyansys.com/version/dev/grpc_api/index.html
warnings.warn(GRPC_GENERAL_WARNING, UserWarning)
PyEDB INFO: Star initializing Edb 04:02:18.551930
PyEDB INFO: Edb version 2025.2
PyEDB INFO: Logger is initialized. Log file is saved to C:\Users\ansys\AppData\Local\Temp\pyedb_ansys.log.
PyEDB INFO: legacy v0.56.0
PyEDB INFO: Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr 5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)]
PyEDB INFO: Database ANSYS-HSD_V1.aedb Opened in 2025.2
PyEDB INFO: Cell main Opened
PyEDB INFO: Builder was initialized.
PyEDB INFO: open_edb completed in 7.4381 seconds.
PyEDB INFO: EDB initialization completed in 7.5015 seconds.
Create config file#
[5]:
cfg_general = {"anti_pads_always_on": True, "suppress_pads": True}
Define dielectric materials, stackup and surface roughness model.
[6]:
cfg_stackup = {
"materials": [
{"name": "copper", "permittivity": 1, "conductivity": 58000000.0},
{"name": "megtron4", "permittivity": 3.77, "dielectric_loss_tangent": 0.005},
{"name": "solder_resist", "permittivity": 3.0, "dielectric_loss_tangent": 0.035},
],
"layers": [
{
"name": "Top",
"type": "signal",
"material": "copper",
"fill_material": "solder_resist",
"thickness": "0.035mm",
"roughness": {
"top": {"model": "huray", "nodule_radius": "0.5um", "surface_ratio": "5"},
"bottom": {"model": "huray", "nodule_radius": "0.5um", "surface_ratio": "5"},
"side": {"model": "huray", "nodule_radius": "0.5um", "surface_ratio": "5"},
"enabled": True,
},
},
{"name": "DE1", "type": "dielectric", "material": "megtron4", "fill_material": "", "thickness": "0.1mm"},
{"name": "Inner1", "type": "signal", "material": "copper", "fill_material": "megtron4", "thickness": "0.017mm"},
{"name": "DE2", "type": "dielectric", "material": "megtron4", "fill_material": "", "thickness": "0.088mm"},
{"name": "Inner2", "type": "signal", "material": "copper", "fill_material": "megtron4", "thickness": "0.017mm"},
{"name": "DE3", "type": "dielectric", "material": "megtron4", "fill_material": "", "thickness": "0.1mm"},
{"name": "Inner3", "type": "signal", "material": "copper", "fill_material": "megtron4", "thickness": "0.017mm"},
{"name": "Megtron4-1mm", "type": "dielectric", "material": "megtron4", "fill_material": "", "thickness": 0.001},
{"name": "Inner4", "type": "signal", "material": "copper", "fill_material": "megtron4", "thickness": "0.017mm"},
{"name": "DE5", "type": "dielectric", "material": "megtron4", "fill_material": "", "thickness": "0.1mm"},
{"name": "Inner5", "type": "signal", "material": "copper", "fill_material": "megtron4", "thickness": "0.017mm"},
{"name": "DE6", "type": "dielectric", "material": "megtron4", "fill_material": "", "thickness": "0.088mm"},
{"name": "Inner6", "type": "signal", "material": "copper", "fill_material": "megtron4", "thickness": "0.017mm"},
{"name": "DE7", "type": "dielectric", "material": "megtron4", "fill_material": "", "thickness": "0.1mm"},
{
"name": "Bottom",
"type": "signal",
"material": "copper",
"fill_material": "solder_resist",
"thickness": "0.035mm",
},
],
}
Define Component with solderballs.
[7]:
cfg_components = [
{
"reference_designator": "U1",
"part_type": "io",
"solder_ball_properties": {"shape": "cylinder", "diameter": "300um", "height": "300um"},
"port_properties": {
"reference_offset": "0",
"reference_size_auto": True,
"reference_size_x": 0,
"reference_size_y": 0,
},
}
]
Edit via padstack definition. Add backdrilling.
[8]:
cfg_padstacks = {
"definitions": [
{
"name": "v40h15-2",
"material": "copper",
"hole_range": "upper_pad_to_lower_pad",
"hole_parameters": {"shape": "circle", "diameter": "0.2mm"},
},
{
"name": "v35h15-1",
"material": "copper",
"hole_range": "upper_pad_to_lower_pad",
"hole_parameters": {"shape": "circle", "diameter": "0.25mm"},
},
],
"instances": [
{
"name": "Via313",
"backdrill_parameters": {
"from_bottom": {"drill_to_layer": "Inner3", "diameter": "1mm", "stub_length": "0.2mm"}
},
},
{
"name": "Via314",
"backdrill_parameters": {
"from_bottom": {"drill_to_layer": "Inner3", "diameter": "1mm", "stub_length": "0.2mm"}
},
},
],
}
Define ports.
[9]:
cfg_ports = [
{
"name": "port_1",
"reference_designator": "U1",
"type": "coax",
"positive_terminal": {"net": "PCIe_Gen4_TX2_CAP_P"},
},
{
"name": "port_2",
"reference_designator": "U1",
"type": "coax",
"positive_terminal": {"net": "PCIe_Gen4_TX2_CAP_N"},
},
{
"name": "port_3",
"reference_designator": "X1",
"type": "circuit",
"positive_terminal": {"pin": "B8"},
"negative_terminal": {"pin": "B7"},
},
{
"name": "port_4",
"reference_designator": "X1",
"type": "circuit",
"positive_terminal": {"pin": "B9"},
"negative_terminal": {"pin": "B10"},
},
]
Define S-parameter assignment
[10]:
cfg_s_parameters = [
{
"name": "cap_10nf",
"file_path": "$PROJECTDIR\\touchstone\\GRM32_DC0V_25degC_series.s2p",
"component_definition": "CAPC1005X55X25LL05T10",
"components": ["C375", "C376"],
"reference_net": "GND",
}
]
Define SIwave setup.
[11]:
cfg_setups = [
{
"name": "siwave_setup",
"type": "siwave_ac",
"si_slider_position": 1,
"freq_sweep": [
{
"name": "Sweep1",
"type": "interpolation",
"frequencies": [
{"distribution": "linear_scale", "start": "50MHz", "stop": "20GHz", "increment": "50MHz"}
],
}
],
}
]
Define cutout.
[12]:
cfg_operations = {
"cutout": {
"signal_list": ["PCIe_Gen4_TX2_CAP_P", "PCIe_Gen4_TX2_CAP_N", "PCIe_Gen4_TX2_P", "PCIe_Gen4_TX2_N"],
"reference_list": ["GND"],
"custom_extent": [
[0.014, 0.055],
[0.03674271504652968, 0.05493094625752912],
[0.07, 0.039],
[0.07, 0.034],
[0.05609890516829415, 0.03395233061637539],
[0.014, 0.044],
],
}
}
Create final configuration.
[13]:
cfg = {
"general": cfg_general,
"stackup": cfg_stackup,
"components": cfg_components,
"padstacks": cfg_padstacks,
"ports": cfg_ports,
"s_parameters": cfg_s_parameters,
"setups": cfg_setups,
"operations": cfg_operations,
}
Create the config file.
[14]:
file_json = os.path.join(temp_folder.name, "edb_configuration.json")
with open(file_json, "w") as f:
json.dump(cfg, f, indent=4, ensure_ascii=False)
Apply Config file#
Apply configuration to the example layout
[15]:
edbapp.configuration.load(config_file=file_json)
edbapp.configuration.run()
PyEDB INFO: Updating boundaries finished. Time lapse 0:00:00
PyEDB INFO: Updating nets finished. Time lapse 0:00:00
PyEDB INFO: Updating components finished. Time lapse 0:00:00.031590
PyEDB INFO: Creating pin groups finished. Time lapse 0:00:00
PyEDB INFO: Placing sources finished. Time lapse 0:00:00
PyEDB INFO: Creating setups finished. Time lapse 0:00:00.238935
PyEDB INFO: Applying materials finished. Time lapse 0:00:00.015844
PyEDB INFO: Updating stackup finished. Time lapse 0:00:08.800638
PyEDB INFO: Applying padstacks finished. Time lapse 0:00:00.016134
PyEDB INFO: Applying S-parameters finished. Time lapse 0:00:00
PyEDB INFO: Applying package definitions finished. Time lapse 0:00:00
PyEDB INFO: Applying modeler finished. Time lapse 0:00:00.461932
PyEDB INFO: Placing ports finished. Time lapse 0:00:00.333983
PyEDB INFO: Placing probes finished. Time lapse 0:00:00
PyEDB INFO: Cutout Multithread started.
PyEDB INFO: Net clean up Elapsed time: 0m 1sec
PyEDB INFO: Extent Creation Elapsed time: 0m 0sec
PyEDB INFO: 1949 Padstack Instances deleted. Elapsed time: 0m 1sec
PyEDB INFO: 443 Primitives deleted. Elapsed time: 0m 3sec
PyEDB INFO: 980 components deleted
PyEDB INFO: Cutout completed. Elapsed time: 0m 5sec
PyEDB INFO: Applying operations finished. Time lapse 0:00:04.870970
[15]:
True
[16]:

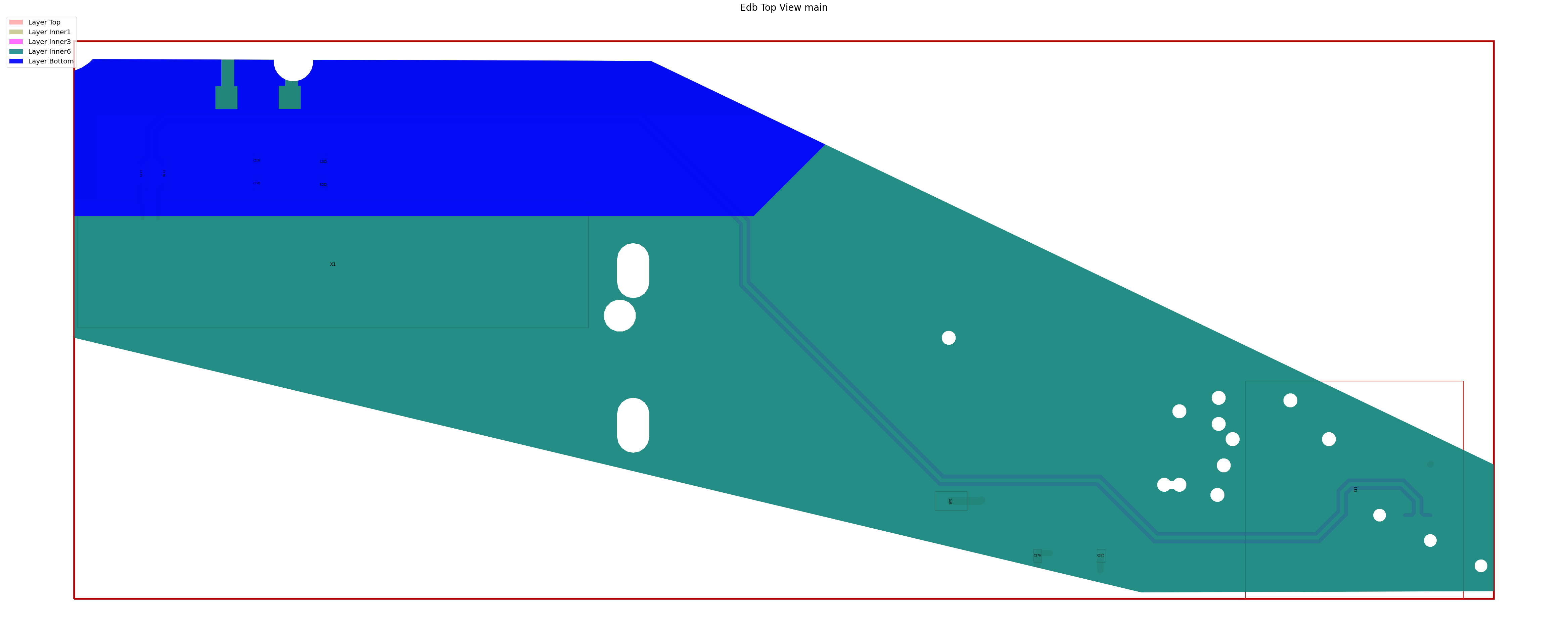

edbapp.nets.plot(nets=[])
PyEDB INFO: Plot Generation time 0.824
[16]:
(<Figure size 6000x3000 with 1 Axes>,
<Axes: title={'center': 'Edb Top View main'}>)
Save and close EDB.
[17]:
edbapp.save()
edbapp.close()
PyEDB INFO: Save Edb file completed in 0.0479 seconds.
PyEDB INFO: Close Edb file completed in 0.0952 seconds.
[17]:
True
The configured EDB file is saved in a temp folder.
[18]:
print(temp_folder.name)
C:\Users\ansys\AppData\Local\Temp\tmp1m5vjiea.ansys
Load edb into HFSS 3D Layout.#
[19]:
h3d = Hfss3dLayout(edbapp.edbpath, version=AEDT_VERSION, non_graphical=NG_MODE, new_desktop=True)
PyAEDT INFO: Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr 5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.20.dev0.
PyAEDT INFO: Initializing new Desktop session.
PyAEDT INFO: Log on console is enabled.
PyAEDT INFO: Log on file C:\Users\ansys\AppData\Local\Temp\pyaedt_ansys_0c1b34e8-f2fb-4f5a-bd37-75cd7ed623c4.log is enabled.
PyAEDT INFO: Log on AEDT is disabled.
PyAEDT INFO: Debug logger is disabled. PyAEDT methods will not be logged.
PyAEDT INFO: Launching PyAEDT with gRPC plugin.
PyAEDT INFO: New AEDT session is starting on gRPC port 57390.
PyAEDT INFO: Electronics Desktop started on gRPC port: 57390 after 11.477855920791626 seconds.
PyAEDT INFO: AEDT installation Path C:\Program Files\ANSYS Inc\v252\AnsysEM
PyAEDT INFO: Ansoft.ElectronicsDesktop.2025.2 version started with process ID 5956.
PyAEDT INFO: EDB folder C:\Users\ansys\AppData\Local\Temp\tmp1m5vjiea.ansys\edb\ANSYS-HSD_V1.aedb has been imported to project ANSYS-HSD_V1
PyAEDT INFO: Active Design set to 0;main
PyAEDT INFO: Active Design set to 0;main
PyAEDT INFO: Aedt Objects correctly read
Create differential pair definition.
[20]:
h3d.set_differential_pair(
differential_mode="DIFF_BGA",
assignment="port_1",
reference="port_2",
)
[20]:
True
[21]:
h3d.set_differential_pair(
differential_mode="DIFF_CONN",
assignment="port_3",
reference="port_4",
)
[21]:
True
Solve. Un-comment to analyze SIwave.
h3d.analyze(setup=”siwave_setup”)
Plot insertion loss.
solutions = h3d.post.get_solution_data(expressions=”mag(S(DIFF_CONN,DIFF_BGA))”, context=”Differential Pairs”) solutions.plot(formula=”db20”)
Shut Down Electronics Desktop
[22]:
h3d.close_desktop()
PyAEDT INFO: Desktop has been released and closed.
[22]:
True
All project files are saved in the folder temp_file.dir. If you’ve run this example as a Jupyter notebook you can retrieve those project files.
