RC circuit design analysis#

This example shows how to use PyAEDT to create a Twin Builder design and run a Twin Builder time-domain simulation.

Keywords: Twin Builder, RC.

Perform imports and define constantss#

Perform required imports.

[1]:

import os
import tempfile
import time

[2]:

import ansys.aedt.core

Define constants.

[3]:

AEDT_VERSION = "2024.2"
NUM_CORES = 4
NG_MODE = False  # Open AEDT UI when it is launched.

Create temporary directory#

Create a temporary directory where downloaded data or dumped data can be stored. If you’d like to retrieve the project data for subsequent use, the temporary folder name is given by temp_folder.name.

[4]:

temp_folder = tempfile.TemporaryDirectory(suffix=".ansys")

Launch Twin Builder#

Launch Twin Builder using an implicit declaration and add a new design with a default setup.

[5]:

project_name = os.path.join(temp_folder.name, "rc_circuit.aedt")
tb = ansys.aedt.core.TwinBuilder(
    project=project_name,
    version=AEDT_VERSION,
    non_graphical=NG_MODE,
    new_desktop=True,
)
tb.modeler.schematic_units = "mil"

PyAEDT INFO: Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr  5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)]
PyAEDT INFO: PyAEDT version 0.12.dev0.
PyAEDT INFO: Initializing new Desktop session.
PyAEDT INFO: Log on console is enabled.
PyAEDT INFO: Log on file C:\Users\ansys\AppData\Local\Temp\pyaedt_ansys_854727fb-adf1-46fe-928c-a8711b6e8db0.log is enabled.
PyAEDT INFO: Log on AEDT is enabled.
PyAEDT INFO: Debug logger is disabled. PyAEDT methods will not be logged.
PyAEDT INFO: Launching PyAEDT with gRPC plugin.
PyAEDT INFO: New AEDT session is starting on gRPC port 52442
PyAEDT INFO: AEDT installation Path C:\Program Files\AnsysEM\v242\Win64
PyAEDT INFO: Ansoft.ElectronicsDesktop.2024.2 version started with process ID 4608.
PyAEDT INFO: Project rc_circuit has been created.
PyAEDT INFO: No design is present. Inserting a new design.
PyAEDT INFO: Added design 'Twin Builder_8PB' of type Twin Builder.
PyAEDT INFO: Aedt Objects correctly read
PyAEDT INFO: ModelerCircuit class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: ModelerTwinBuilder class has been initialized!

Create components for RC circuit#

Create components for an RC circuit driven by a pulse voltage source. Create components, such as a voltage source, resistor, and capacitor.

[6]:

source = tb.modeler.schematic.create_voltage_source("E1", "EPULSE", 10, 10, [0, 0])
resistor = tb.modeler.schematic.create_resistor("R1", 10000, [1000, 1000], 90)
capacitor = tb.modeler.schematic.create_capacitor("C1", 1e-6, [2000, 0])

Create ground#

Create a ground, which is needed for an analog analysis.

[7]:

gnd = tb.modeler.components.create_gnd([0, -1000])

Connect components#

Connects components with pins.

[8]:

source.pins[1].connect_to_component(resistor.pins[0])
resistor.pins[1].connect_to_component(capacitor.pins[0])
capacitor.pins[1].connect_to_component(source.pins[0])
source.pins[0].connect_to_component(gnd.pins[0])

[8]:

(True,
 <ansys.aedt.core.modeler.circuits.object_3d_circuit.CircuitComponent at 0x2719e098850>,
 <ansys.aedt.core.modeler.circuits.object_3d_circuit.CircuitComponent at 0x2719e098b80>)

Parametrize transient setup#

Parametrize the default transient setup by setting the end time.

[9]:

tb.set_end_time("300ms")

[9]:

True

Solve transient setup#

[10]:

tb.analyze_setup("TR")

PyAEDT INFO: Key Desktop/ActiveDSOConfigurations/Twin Builder correctly changed.
PyAEDT INFO: Solving design setup TR
PyAEDT INFO: Key Desktop/ActiveDSOConfigurations/Twin Builder correctly changed.
PyAEDT INFO: Design setup TR solved correctly in 0.0h 0.0m 6.0s

[10]:

True

Get report data and plot using Matplotlib#

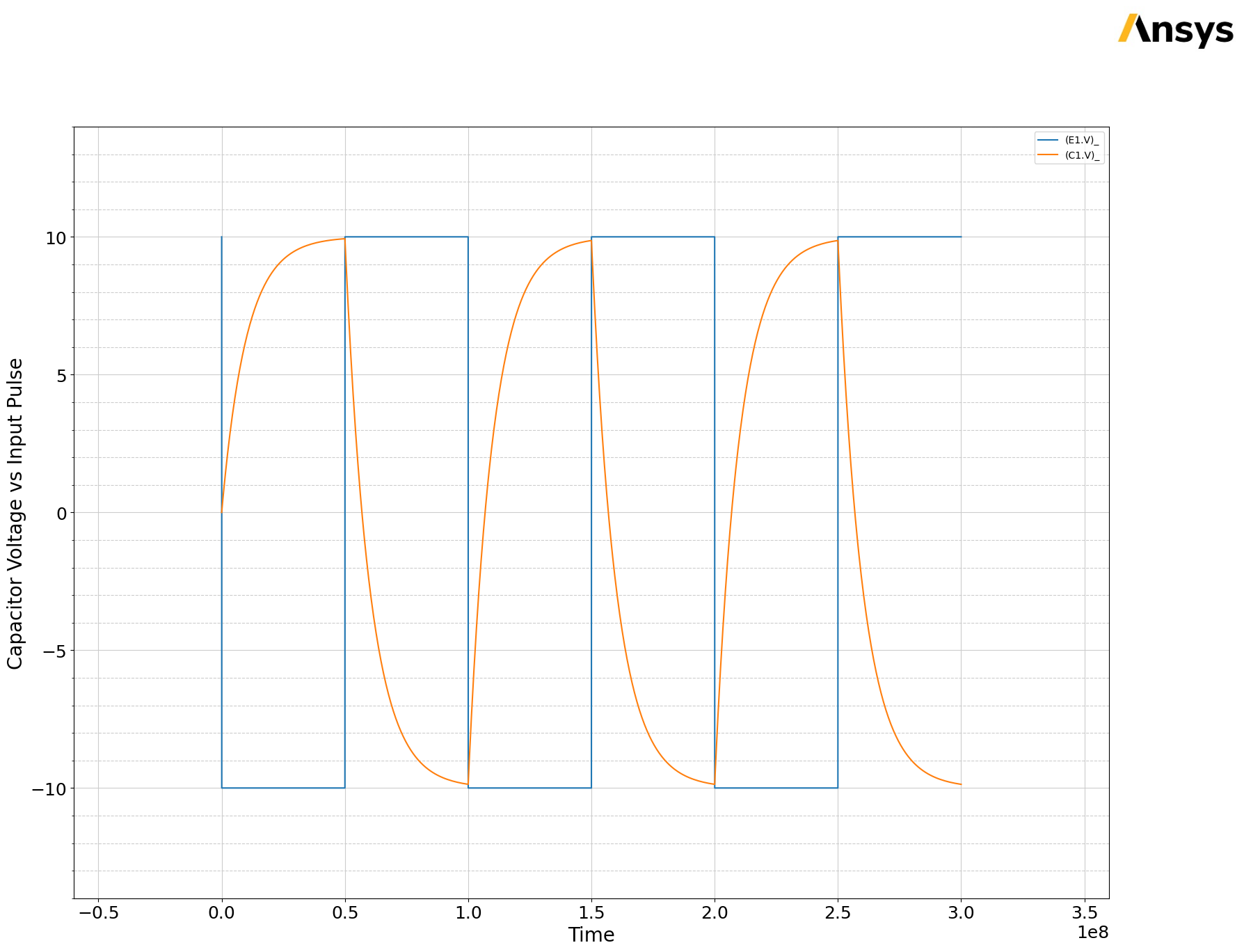

Get report data and plot it using Matplotlib. The following code gets and plots the values for the voltage on the pulse voltage source and the values for the voltage on the capacitor in the RC circuit.

[11]:

E_Value = "E1.V"
C_Value = "C1.V"

[12]:

x = tb.post.get_solution_data([E_Value, C_Value], "TR", "Time")
x.plot([E_Value, C_Value], x_label="Time", y_label="Capacitor Voltage vs Input Pulse")

PyAEDT INFO: Post class has been initialized! Elapsed time: 0m 1sec
PyAEDT INFO: Solution Data Correctly Loaded.

C:\actions-runner\_work\pyaedt-examples\pyaedt-examples\.venv\lib\site-packages\ansys\aedt\core\visualization\plot\matplotlib.py:980: UserWarning: Attempting to set identical low and high ylims makes transformation singular; automatically expanding.
  self.ax.set_ylim(min_y - y_range * 0.2, max_y + y_range * 0.2)

[12]:

../../../../_images/examples_low_frequency_general_twin_builder_rc_circuit_22_2.png

../../../../_images/examples_low_frequency_general_twin_builder_rc_circuit_22_3.png

Release AEDT#

Release AEDT and close the example.

[13]:

tb.save_project()
tb.release_desktop()
# Wait 3 seconds to allow AEDT to shut down before cleaning the temporary directory.
time.sleep(3)

PyAEDT INFO: Project rc_circuit Saved correctly
PyAEDT INFO: Desktop has been released and closed.

Clean up#

All project files are saved in the folder temp_folder.name. If you’ve run this example as a Jupyter notebook, you can retrieve those project files. The following cell removes all temporary files, including the project folder.

[14]:

temp_folder.cleanup()
