Spiral inductor#

This example shows how to use PyAEDT to create a spiral inductor, solve it, and plot results.

Keywords: HFSS, spiral, inductance, output variable.

Perform imports and define constants#

Perform required imports.

[1]:

import os
import tempfile
import time

[2]:

import ansys.aedt.core

Define constants.

[3]:

AEDT_VERSION = "2024.2"
NUM_CORES = 4
NG_MODE = False  # Open AEDT UI when it is launched.

Create temporary directory#

Create a temporary directory where downloaded data or dumped data can be stored. If you’d like to retrieve the project data for subsequent use, the temporary folder name is given by temp_folder.name.

[4]:

temp_folder = tempfile.TemporaryDirectory(suffix=".ansys")

Launch HFSS#

Create an HFSS design and change the units to microns.

[5]:

project_name = os.path.join(temp_folder.name, "spiral.aedt")
hfss = ansys.aedt.core.Hfss(
    project=project_name,
    version=AEDT_VERSION,
    non_graphical=NG_MODE,
    design="A1",
    new_desktop=True,
    solution_type="Modal",
)
hfss.modeler.model_units = "um"

PyAEDT INFO: Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr  5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)]
PyAEDT INFO: PyAEDT version 0.12.dev0.
PyAEDT INFO: Initializing new Desktop session.
PyAEDT INFO: Log on console is enabled.
PyAEDT INFO: Log on file C:\Users\ansys\AppData\Local\Temp\pyaedt_ansys_f48881b1-3bd5-4f1d-a726-4d7a54f44574.log is enabled.
PyAEDT INFO: Log on AEDT is enabled.
PyAEDT INFO: Debug logger is disabled. PyAEDT methods will not be logged.
PyAEDT INFO: Launching PyAEDT with gRPC plugin.
PyAEDT INFO: New AEDT session is starting on gRPC port 49806
PyAEDT INFO: AEDT installation Path C:\Program Files\AnsysEM\v242\Win64
PyAEDT INFO: Ansoft.ElectronicsDesktop.2024.2 version started with process ID 3788.
PyAEDT INFO: Project spiral has been created.
PyAEDT INFO: Added design 'A1' of type HFSS.
PyAEDT INFO: Aedt Objects correctly read
PyAEDT INFO: Modeler class has been initialized! Elapsed time: 0m 1sec

Define variables#

Define input variables. You can use the values that follow or edit them.

[6]:

rin = 10
width = 2
spacing = 1
thickness = 1
Np = 8
Nr = 10
gap = 3
hfss["Tsub"] = "6" + hfss.modeler.model_units

Standardize polyline#

Define a function that creates a polyline using the create_line() method. This function creates a polyline having a fixed width, thickness, and material.

[7]:

def create_line(pts):
    hfss.modeler.create_polyline(
        pts,
        xsection_type="Rectangle",
        xsection_width=width,
        xsection_height=thickness,
        material="copper",
    )

Create spiral inductor#

Create the spiral inductor. This spiral inductor is not parametric, but you could parametrize it later.

[8]:

ind = hfss.modeler.create_spiral(
    internal_radius=rin,
    width=width,
    spacing=spacing,
    turns=Nr,
    faces=Np,
    thickness=thickness,
    material="copper",
    name="Inductor1",
)

PyAEDT INFO: Materials class has been initialized! Elapsed time: 0m 0sec

Center return path#

Center the return path.

[9]:

x0, y0, z0 = ind.points[0]
x1, y1, z1 = ind.points[-1]
create_line([(x0 - width / 2, y0, -gap), (abs(x1) + 5, y0, -gap)])
hfss.modeler.create_box(
    [x0 - width / 2, y0 - width / 2, -gap - thickness / 2],
    [width, width, gap + thickness],
    matname="copper",
)

PyAEDT WARNING: Argument `matname` is deprecated for method `create_box`; use `material` instead.

[9]:

<ansys.aedt.core.modeler.cad.object_3d.Object3d at 0x2100dc12f20>

Create port 1.

[10]:

hfss.modeler.create_rectangle(
    orientation=ansys.aedt.core.constants.PLANE.YZ,
    origin=[abs(x1) + 5, y0 - width / 2, -gap - thickness / 2],
    sizes=[width, "-Tsub+{}{}".format(gap, hfss.modeler.model_units)],
    name="port1",
)
hfss.lumped_port(assignment="port1", integration_line=ansys.aedt.core.constants.AXIS.Z)

PyAEDT INFO: Boundary Lumped Port Port_8XP3LB has been correctly created.

[10]:

<ansys.aedt.core.modules.boundary.BoundaryObject at 0x21020c93f40>

Create port 2.

[11]:

create_line([(x1 + width / 2, y1, 0), (x1 - 5, y1, 0)])
hfss.modeler.create_rectangle(
    ansys.aedt.core.constants.PLANE.YZ,
    [x1 - 5, y1 - width / 2, -thickness / 2],
    [width, "-Tsub"],
    name="port2",
)
hfss.lumped_port(assignment="port2", integration_line=ansys.aedt.core.constants.AXIS.Z)

PyAEDT INFO: Boundary Lumped Port Port_EXYXPN has been correctly created.

[11]:

<ansys.aedt.core.modules.boundary.BoundaryObject at 0x21020c934c0>

Create the silicon substrate and the ground plane.

[12]:

hfss.modeler.create_box(
    [x1 - 20, x1 - 20, "-Tsub-{}{}/2".format(thickness, hfss.modeler.model_units)],
    [-2 * x1 + 40, -2 * x1 + 40, "Tsub"],
    material="silicon",
)

hfss.modeler.create_box(
    [x1 - 20, x1 - 20, "-Tsub-{}{}/2".format(thickness, hfss.modeler.model_units)],
    [-2 * x1 + 40, -2 * x1 + 40, -0.1],
    material="PEC",
)

[12]:

<ansys.aedt.core.modeler.cad.object_3d.Object3d at 0x2101dc54400>

Set up model#

Create the air box and radiation boundary condition.

[13]:

box = hfss.modeler.create_box(
    [
        x1 - 20,
        x1 - 20,
        "-Tsub-{}{}/2 - 0.1{}".format(
            thickness, hfss.modeler.model_units, hfss.modeler.model_units
        ),
    ],
    [-2 * x1 + 40, -2 * x1 + 40, 100],
    name="airbox",
    material="air",
)

hfss.assign_radiation_boundary_to_objects("airbox")

PyAEDT INFO: Boundary Radiation Rad__PGCR7F has been correctly created.

[13]:

<ansys.aedt.core.modules.boundary.BoundaryObject at 0x21020c92da0>

Assign a material override that allows object intersections, assigning conductors higher priority than insulators.

[14]:

hfss.change_material_override()

PyAEDT INFO: Enabling Material Override

[14]:

True

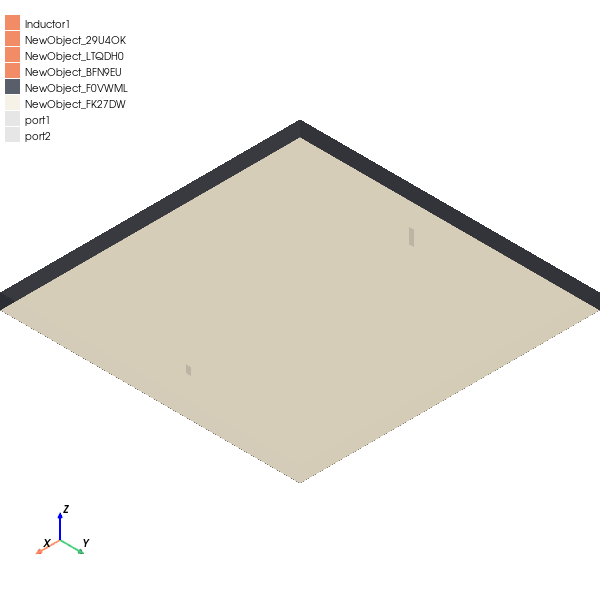

View the model.

[15]:

hfss.plot(
    show=False,
    output_file=os.path.join(hfss.working_directory, "Image.jpg"),
    plot_air_objects=False,
)

PyAEDT INFO: Parsing C:/Users/ansys/AppData/Local/Temp/tmpg5hclwre.ansys/spiral.aedt.
PyAEDT INFO: File C:/Users/ansys/AppData/Local/Temp/tmpg5hclwre.ansys/spiral.aedt correctly loaded. Elapsed time: 0m 0sec
PyAEDT INFO: aedt file load time 0.0
PyAEDT INFO: PostProcessor class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: Post class has been initialized! Elapsed time: 0m 0sec

C:\actions-runner\_work\pyaedt-examples\pyaedt-examples\.venv\lib\site-packages\pyvista\jupyter\notebook.py:37: UserWarning: Failed to use notebook backend:

No module named 'trame'

Falling back to a static output.
  warnings.warn(

../../../_images/examples_high_frequency_radiofrequency_mmwave_spiral_29_2.png

[15]:

<ansys.aedt.core.visualization.plot.pyvista.ModelPlotter at 0x21020c922f0>

Generate the solution#

Create the setup, including a frequency sweep. Then, solve the project.

[16]:

setup1 = hfss.create_setup(name="setup1")
setup1.props["Frequency"] = "10GHz"
hfss.create_linear_count_sweep(
    setup="setup1",
    units="GHz",
    start_frequency=1e-3,
    stop_frequency=50,
    num_of_freq_points=451,
    sweep_type="Interpolating",
)
hfss.save_project()
hfss.analyze(cores=NUM_CORES)

PyAEDT INFO: Linear count sweep Sweep_RMU5JZ has been correctly created.
PyAEDT INFO: Project spiral Saved correctly
PyAEDT INFO: Key Desktop/ActiveDSOConfigurations/HFSS correctly changed.
PyAEDT INFO: Solving all design setups.
PyAEDT INFO: Key Desktop/ActiveDSOConfigurations/HFSS correctly changed.
PyAEDT INFO: Design setup None solved correctly in 0.0h 1.0m 10.0s

[16]:

True

Postprocess#

Get report data and use the following formulas to calculate the inductance and quality factor.

[17]:

L_formula = "1e9*im(1/Y(1,1))/(2*pi*freq)"
Q_formula = "im(Y(1,1))/re(Y(1,1))"

Define the inductance as a postprocessing variable.

[18]:

hfss.create_output_variable("L", L_formula, solution="setup1 : LastAdaptive")

[18]:

True

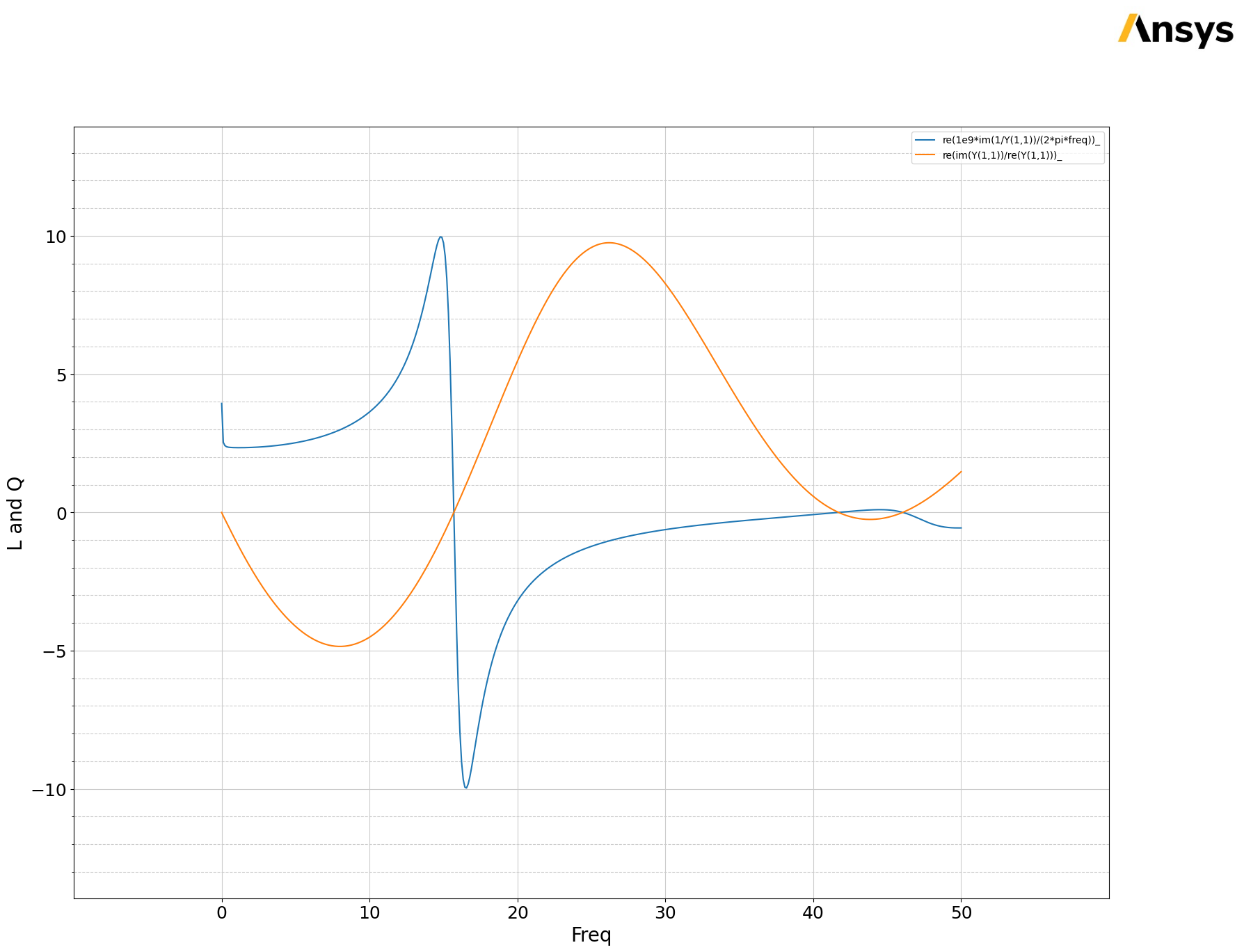

Plot the results using Matplotlib.

[19]:

data = hfss.post.get_solution_data([L_formula, Q_formula])
data.plot(
    curves=[L_formula, Q_formula], formula="re", x_label="Freq", y_label="L and Q"
)

PyAEDT INFO: Solution Data Correctly Loaded.

[19]:

../../../_images/examples_high_frequency_radiofrequency_mmwave_spiral_37_1.png

../../../_images/examples_high_frequency_radiofrequency_mmwave_spiral_37_2.png

Export results to a CSV file

[20]:

data.export_data_to_csv(os.path.join(hfss.toolkit_directory, "output.csv"))

[20]:

True

Save project and close AEDT#

Save the project and close AEDT.

[21]:

hfss.save_project()
hfss.release_desktop()
# Wait 3 seconds to allow AEDT to shut down before cleaning the temporary directory.
time.sleep(3)

PyAEDT INFO: Project spiral Saved correctly
PyAEDT INFO: Desktop has been released and closed.

Clean up#

All project files are saved in the folder temp_folder.name. If you’ve run this example as a Jupyter notebook, you can retrieve those project files. The following cell removes all temporary files, including the project folder.

[22]:

temp_folder.cleanup()
