Power integrity analysis#

This example shows how to use the Ansys Electronics Database (EDB) for power integrity analysis. The EDB is loaded into HFSS 3D Layout for analysis and postprocessing.

Set up EDB consists of these steps:
- Assign S-parameter model to components.
- Create pin groups.
- Create ports.
- Create SIwave SYZ analysis.
- Create cutout.
Import EDB into HFSS 3D Layout:
- Analyze.

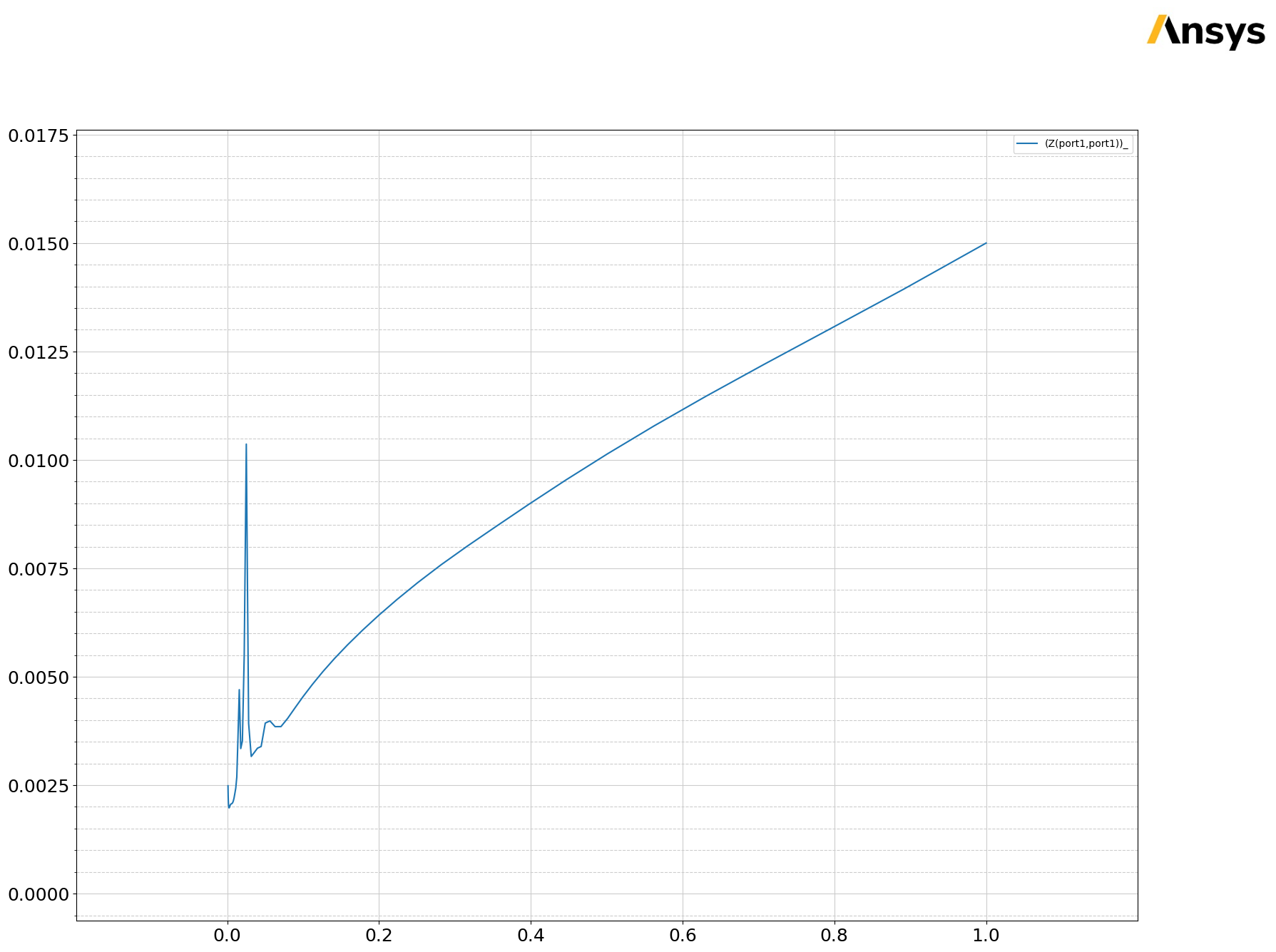

- Plot $Z_{11}$ .

Keywords: HFSS 3D Layout, power integrity.

Perform imports and define constants#

Import the required packages

[1]:

import json
import os
import tempfile
import time

import ansys.aedt.core
from ansys.aedt.core.examples.downloads import download_file

Define constants.

[2]:

AEDT_VERSION = "2025.2"
NUM_CORES = 4
NG_MODE = False  # Open AEDT UI when it is launched.

Create temporary directory#

Create a temporary directory where downloaded data or dumped data can be stored. If you’d like to retrieve the project data for subsequent use, the temporary folder name is given by temp_folder.name.

[3]:

temp_folder = tempfile.TemporaryDirectory(suffix=".ansys")

Download the example PCB data.

[4]:

aedb = download_file(source="edb/ANSYS-HSD_V1.aedb", local_path=temp_folder.name)
_ = download_file(
    source="touchstone",
    name="GRM32_DC0V_25degC_series.s2p",
    local_path=temp_folder.name,
)

Create configuration file#

This example uses a configuration file to set up the layout for analysis. Initialize and create an empty dictionary to host all configurations.

[5]:

cfg = dict()

Assigns S-parameter models to capacitors. The first step is to use the “general” key to specify where the S-parameter files can be found.

[6]:

cfg["general"] = {"s_parameter_library": os.path.join(temp_folder.name, "touchstone")}

Assign model to capactitors#

The model GRM32_DC0V_25degC_series.s2p is assigned to capacitors C3 and C4, which share the same component part number. When “apply_to_all” is True, all components having the part number “CAPC3216X180X20ML20” are assigned the S-parameter model.

[7]:

cfg["s_parameters"] = [
    {
        "name": "GRM32_DC0V_25degC_series",
        "component_definition": "CAPC0603X33X15LL03T05",
        "file_path": "GRM32_DC0V_25degC_series.s2p",
        "apply_to_all": False,
        "components": ["C110", "C206"],
        "reference_net": "GND",
        "reference_net_per_component": {"C110": "GND"},
    }
]

Create pin groups#

Pins can be grouped explicitly by the pin name, or pin groups can be assigned by net name using the ‘’net’’ key. The following code combine the listed pins on component U2 into two pin groups using the net key.

[8]:

cfg["pin_groups"] = [
    {
        "name": "PIN_GROUP_1",
        "reference_designator": "U1",
        "pins": ["AD14", "AD15", "AD16", "AD17"],
    },
    {"name": "PIN_GROUP_2", "reference_designator": "U1", "net": "GND"},
]

Create ports#

Create a circuit port between the two pin groups just created.

[9]:

cfg["ports"] = [
    {
        "name": "port1",
        "reference_designator": "U1",
        "type": "circuit",
        "positive_terminal": {"pin_group": "PIN_GROUP_1"},
        "negative_terminal": {"pin_group": "PIN_GROUP_2"},
    }
]

Create SIwave SYZ analysis setup#

Both SIwave and HFSS can be used to run an analysis in the 3D Layout user interface.

[10]:

cfg["setups"] = [
    {
        "name": "siwave_syz",
        "type": "siwave_syz",
        "pi_slider_position": 1,
        "freq_sweep": [
            {
                "name": "Sweep1",
                "type": "Interpolation",
                "frequencies": [
                    {
                        "distribution": "log scale",
                        "start": 1e6,
                        "stop": 1e9,
                        "samples": 20,
                    }
                ],
            }
        ],
    }
]

Define cutout#

Define the region of the PCB to be cut out for analysis.

[11]:

cfg["operations"] = {
    "cutout": {
        "signal_list": ["1V0"],
        "reference_list": ["GND"],
        "extent_type": "ConvexHull",
        "expansion_size": 0.002,
        "use_round_corner": False,
        "output_aedb_path": "",
        "open_cutout_at_end": True,
        "use_pyaedt_cutout": True,
        "number_of_threads": 4,
        "use_pyaedt_extent_computing": True,
        "extent_defeature": 0,
        "remove_single_pin_components": False,
        "custom_extent": "",
        "custom_extent_units": "mm",
        "include_partial_instances": False,
        "keep_voids": True,
        "check_terminals": False,
        "include_pingroups": False,
        "expansion_factor": 0,
        "maximum_iterations": 10,
        "preserve_components_with_model": False,
        "simple_pad_check": True,
        "keep_lines_as_path": False,
    }
}

Save configuration#

Save the configuration file to a JSON file and apply it to layout data using the EDB.

[12]:

pi_json = os.path.join(temp_folder.name, "pi.json")
with open(pi_json, "w") as f:
    json.dump(cfg, f, indent=4, ensure_ascii=False)

Load configuration into EDB#

Load the configuration into EDB from the JSON file.

[13]:

edbapp = ansys.aedt.core.Edb(aedb, edbversion=AEDT_VERSION)
edbapp.configuration.load(config_file=pi_json)
edbapp.configuration.run()
edbapp.save()
edbapp.close()

C:\actions-runner\_work\pyaedt-examples\pyaedt-examples\.venv\lib\site-packages\pyedb\misc\decorators.py:55: UserWarning: Argument `edbversion` is deprecated for method `Edb`; use `version` instead.
  warnings.warn(
C:\actions-runner\_work\pyaedt-examples\pyaedt-examples\.venv\lib\site-packages\pyedb\generic\design_types.py:301: UserWarning: Your ANSYS AEDT version is eligible to gRPC version.You might consider switching to that version for better user experience.For more information please check this link: https://edb.docs.pyansys.com/version/dev/grpc_api/index.html
  warnings.warn(GRPC_GENERAL_WARNING, UserWarning)

PyEDB INFO: Star initializing Edb 05:31:46.379383

INFO:Edb:Star initializing Edb 05:31:46.379383

PyEDB INFO: Edb version 2025.2

INFO:Edb:Edb version 2025.2

PyEDB INFO: Logger is initialized. Log file is saved to C:\Users\ansys\AppData\Local\Temp\pyedb_ansys.log.

INFO:Edb:Logger is initialized. Log file is saved to C:\Users\ansys\AppData\Local\Temp\pyedb_ansys.log.

PyEDB INFO: legacy v0.61.0

INFO:Edb:legacy v0.61.0

PyEDB INFO: Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr  5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)]

INFO:Edb:Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr  5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)]

PyEDB INFO: Database ANSYS-HSD_V1.aedb Opened in 2025.2

INFO:Edb:Database ANSYS-HSD_V1.aedb Opened in 2025.2

PyEDB INFO: Cell main Opened

INFO:Edb:Cell main Opened

PyEDB INFO: Builder was initialized.

INFO:Edb:Builder was initialized.

PyEDB INFO: open_edb completed in 9.0889 seconds.

INFO:Edb:open_edb completed in 9.0889 seconds.

PyEDB INFO: EDB initialization completed in 9.1683 seconds.

INFO:Edb:EDB initialization completed in 9.1683 seconds.

PyEDB INFO: Updating boundaries finished. Time lapse 0:00:00.015755

INFO:Edb:Updating boundaries finished. Time lapse 0:00:00.015755

PyEDB INFO: Updating nets finished. Time lapse 0:00:00

INFO:Edb:Updating nets finished. Time lapse 0:00:00

PyEDB INFO: Updating components finished. Time lapse 0:00:00

INFO:Edb:Updating components finished. Time lapse 0:00:00

PyEDB INFO: Creating pin groups finished. Time lapse 0:00:00.649001

INFO:Edb:Creating pin groups finished. Time lapse 0:00:00.649001

PyEDB INFO: Placing sources finished. Time lapse 0:00:00

INFO:Edb:Placing sources finished. Time lapse 0:00:00

PyEDB INFO: Applying materials finished. Time lapse 0:00:00

INFO:Edb:Applying materials finished. Time lapse 0:00:00

PyEDB INFO: Updating stackup finished. Time lapse 0:00:00

INFO:Edb:Updating stackup finished. Time lapse 0:00:00

PyEDB INFO: Applying padstacks finished. Time lapse 0:00:00

INFO:Edb:Applying padstacks finished. Time lapse 0:00:00

PyEDB INFO: Applying S-parameters finished. Time lapse 0:00:00.015741

INFO:Edb:Applying S-parameters finished. Time lapse 0:00:00.015741

PyEDB INFO: Applying package definitions finished. Time lapse 0:00:00

INFO:Edb:Applying package definitions finished. Time lapse 0:00:00

PyEDB INFO: Applying modeler finished. Time lapse 0:00:00

INFO:Edb:Applying modeler finished. Time lapse 0:00:00

PyEDB INFO: Placing ports finished. Time lapse 0:00:00.016060

INFO:Edb:Placing ports finished. Time lapse 0:00:00.016060

PyEDB INFO: Placing terminals completed in 0.0000 seconds.

INFO:Edb:Placing terminals completed in 0.0000 seconds.

PyEDB INFO: Placing probes finished. Time lapse 0:00:00

INFO:Edb:Placing probes finished. Time lapse 0:00:00

PyEDB INFO: -----------------------------------------

C:\actions-runner\_work\pyaedt-examples\pyaedt-examples\.venv\lib\site-packages\pyedb\misc\decorators.py:55: UserWarning: Argument `signal_list` is deprecated for method `cutout`; use `signal_nets` instead.
  warnings.warn(
C:\actions-runner\_work\pyaedt-examples\pyaedt-examples\.venv\lib\site-packages\pyedb\misc\decorators.py:55: UserWarning: Argument `reference_list` is deprecated for method `cutout`; use `reference_nets` instead.
  warnings.warn(
INFO:Edb:-----------------------------------------

PyEDB INFO: Trying cutout with (0.002)*(1000.0)mm expansion size

INFO:Edb:Trying cutout with (0.002)*(1000.0)mm expansion size

PyEDB INFO: -----------------------------------------

INFO:Edb:-----------------------------------------

PyEDB INFO: Cutout Multithread started.

INFO:Edb:Cutout Multithread started.

PyEDB INFO: Net clean up Elapsed time: 0m 1sec

INFO:Edb:Net clean up Elapsed time: 0m 1sec

PyEDB INFO: Extent Creation Elapsed time: 0m 0sec

INFO:Edb:Extent Creation Elapsed time: 0m 0sec

PyEDB INFO: 1310 Padstack Instances deleted. Elapsed time: 0m 1sec

INFO:Edb:1310 Padstack Instances deleted. Elapsed time: 0m 1sec

PyEDB INFO: 265 Primitives deleted. Elapsed time: 0m 2sec

INFO:Edb:265 Primitives deleted. Elapsed time: 0m 2sec

PyEDB INFO: 702 components deleted

INFO:Edb:702 components deleted

PyEDB INFO: Cutout completed. Elapsed time: 0m 4sec

INFO:Edb:Cutout completed. Elapsed time: 0m 4sec

PyEDB INFO: EDB file save completed in 0.0792 seconds.

INFO:Edb:EDB file save completed in 0.0792 seconds.

PyEDB INFO: Cutout completed in 1 iterations with expansion size of (0.002)*(1000.0)mm Elapsed time: 0m 5sec

INFO:Edb:Cutout completed in 1 iterations with expansion size of (0.002)*(1000.0)mm Elapsed time: 0m 5sec

PyEDB INFO: Applying operations completed in 4.5657 seconds.

INFO:Edb:Applying operations completed in 4.5657 seconds.

PyEDB INFO: Save Edb file completed in 0.0631 seconds.

INFO:Edb:Save Edb file completed in 0.0631 seconds.

PyEDB INFO: Close Edb file completed in 0.0789 seconds.

INFO:Edb:Close Edb file completed in 0.0789 seconds.

[13]:

True

The configured EDB file is saved in the temporary folder.

[14]:

print(temp_folder.name)

C:\Users\ansys\AppData\Local\Temp\tmp0irvava1.ansys

Analyze in HFSS 3D Layout#

Load EDB into HFSS 3D Layout#

[15]:

h3d = ansys.aedt.core.Hfss3dLayout(
    aedb, version=AEDT_VERSION, non_graphical=NG_MODE, new_desktop=True
)

PyAEDT INFO: Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr  5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)].

INFO:Global:Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr  5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)].

PyAEDT INFO: PyAEDT version 0.22.dev0.

INFO:Global:PyAEDT version 0.22.dev0.

PyAEDT INFO: Initializing new Desktop session.

INFO:Global:Initializing new Desktop session.

PyAEDT INFO: Log on console is enabled.

INFO:Global:Log on console is enabled.

PyAEDT INFO: Log on file C:\Users\ansys\AppData\Local\Temp\pyaedt_ansys_3e449f4a-1fc7-4e5e-8238-700b79e22360.log is enabled.

INFO:Global:Log on file C:\Users\ansys\AppData\Local\Temp\pyaedt_ansys_3e449f4a-1fc7-4e5e-8238-700b79e22360.log is enabled.

PyAEDT INFO: Log on AEDT is disabled.

INFO:Global:Log on AEDT is disabled.

PyAEDT INFO: Debug logger is disabled. PyAEDT methods will not be logged.

INFO:Global:Debug logger is disabled. PyAEDT methods will not be logged.

PyAEDT INFO: Launching PyAEDT with gRPC plugin.

INFO:Global:Launching PyAEDT with gRPC plugin.

PyAEDT INFO: New AEDT session is starting on gRPC port 57258.

INFO:Global:New AEDT session is starting on gRPC port 57258.

PyAEDT INFO: Electronics Desktop started on gRPC port: 57258 after 10.199898958206177 seconds.

INFO:Global:Electronics Desktop started on gRPC port: 57258 after 10.199898958206177 seconds.

PyAEDT INFO: AEDT installation Path C:\Program Files\ANSYS Inc\v252\AnsysEM

INFO:Global:AEDT installation Path C:\Program Files\ANSYS Inc\v252\AnsysEM

PyAEDT INFO: Ansoft.ElectronicsDesktop.2025.2 version started with process ID 4384.

INFO:Global:Ansoft.ElectronicsDesktop.2025.2 version started with process ID 4384.

PyAEDT INFO: EDB folder C:\Users\ansys\AppData\Local\Temp\tmp0irvava1.ansys\edb\ANSYS-HSD_V1.aedb has been imported to project ANSYS-HSD_V1

INFO:Global:EDB folder C:\Users\ansys\AppData\Local\Temp\tmp0irvava1.ansys\edb\ANSYS-HSD_V1.aedb has been imported to project ANSYS-HSD_V1

PyAEDT INFO: Active Design set to 0;main

INFO:Global:Active Design set to 0;main

PyAEDT INFO: Active Design set to 0;main

INFO:Global:Active Design set to 0;main

PyAEDT INFO: Aedt Objects correctly read

INFO:Global:Aedt Objects correctly read

Analyze#

[16]:

h3d.analyze(cores=NUM_CORES)

PyAEDT INFO: Project ANSYS-HSD_V1 Saved correctly

INFO:Global:Project ANSYS-HSD_V1 Saved correctly

PyAEDT INFO: Key Desktop/ActiveDSOConfigurations/HFSS 3D Layout Design correctly changed.

INFO:Global:Key Desktop/ActiveDSOConfigurations/HFSS 3D Layout Design correctly changed.

PyAEDT INFO: Solving all design setups. Analysis started...

INFO:Global:Solving all design setups. Analysis started...

PyAEDT INFO: Design setup None solved correctly in 0.0h 0.0m 40.0s

INFO:Global:Design setup None solved correctly in 0.0h 0.0m 40.0s

PyAEDT INFO: Key Desktop/ActiveDSOConfigurations/HFSS 3D Layout Design correctly changed.

INFO:Global:Key Desktop/ActiveDSOConfigurations/HFSS 3D Layout Design correctly changed.

[16]:

True

Plot impedance#

[17]:

solutions = h3d.post.get_solution_data(expressions="Z(port1,port1)")
solutions.plot()

PyAEDT INFO: Parsing C:\Users\ansys\AppData\Local\Temp\tmp0irvava1.ansys\edb\ANSYS-HSD_V1.aedt.

INFO:Global:Parsing C:\Users\ansys\AppData\Local\Temp\tmp0irvava1.ansys\edb\ANSYS-HSD_V1.aedt.

PyAEDT INFO: File C:\Users\ansys\AppData\Local\Temp\tmp0irvava1.ansys\edb\ANSYS-HSD_V1.aedt correctly loaded. Elapsed time: 0m 0sec

INFO:Global:File C:\Users\ansys\AppData\Local\Temp\tmp0irvava1.ansys\edb\ANSYS-HSD_V1.aedt correctly loaded. Elapsed time: 0m 0sec

PyAEDT INFO: aedt file load time 0.29680776596069336

INFO:Global:aedt file load time 0.29680776596069336

PyAEDT INFO: PostProcessor class has been initialized! Elapsed time: 0m 0sec

INFO:Global:PostProcessor class has been initialized! Elapsed time: 0m 0sec

PyAEDT INFO: Post class has been initialized! Elapsed time: 0m 0sec

INFO:Global:Post class has been initialized! Elapsed time: 0m 0sec

PyAEDT INFO: Loading Modeler.

INFO:Global:Loading Modeler.

PyAEDT INFO: Modeler loaded.

INFO:Global:Modeler loaded.

PyAEDT INFO: EDB loaded.

INFO:Global:EDB loaded.

PyAEDT INFO: Layers loaded.

INFO:Global:Layers loaded.

PyAEDT INFO: Primitives loaded.

INFO:Global:Primitives loaded.

PyAEDT INFO: Modeler class has been initialized! Elapsed time: 0m 0sec

INFO:Global:Modeler class has been initialized! Elapsed time: 0m 0sec

PyEDB INFO: Star initializing Edb 05:33:10.748905

C:\actions-runner\_work\pyaedt-examples\pyaedt-examples\.venv\lib\site-packages\pyedb\generic\design_types.py:301: UserWarning: Your ANSYS AEDT version is eligible to gRPC version.You might consider switching to that version for better user experience.For more information please check this link: https://edb.docs.pyansys.com/version/dev/grpc_api/index.html
  warnings.warn(GRPC_GENERAL_WARNING, UserWarning)
INFO:Edb:Star initializing Edb 05:33:10.748905

PyEDB INFO: Edb version 2025.2

INFO:Edb:Edb version 2025.2

PyEDB INFO: Logger is initialized. Log file is saved to C:\Users\ansys\AppData\Local\Temp\pyedb_ansys.log.

INFO:Edb:Logger is initialized. Log file is saved to C:\Users\ansys\AppData\Local\Temp\pyedb_ansys.log.

PyEDB INFO: legacy v0.61.0

INFO:Edb:legacy v0.61.0

PyEDB INFO: Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr  5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)]

INFO:Edb:Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr  5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)]

PyEDB INFO: Database ANSYS-HSD_V1.aedb Opened in 2025.2

INFO:Edb:Database ANSYS-HSD_V1.aedb Opened in 2025.2

PyEDB INFO: Cell main Opened

INFO:Edb:Cell main Opened

PyEDB INFO: Builder was initialized.

INFO:Edb:Builder was initialized.

PyEDB INFO: open_edb completed in 0.1424 seconds.

INFO:Edb:open_edb completed in 0.1424 seconds.

PyEDB INFO: EDB initialization completed in 0.1586 seconds.

INFO:Edb:EDB initialization completed in 0.1586 seconds.

PyAEDT WARNING: No report category provided. Automatically identified Standard

WARNING:Global:No report category provided. Automatically identified Standard

PyAEDT INFO: Solution Data Correctly Loaded.

INFO:Global:Solution Data Correctly Loaded.

Time to initialize solution data:0.015729188919067383
Time to initialize solution data:0.015729188919067383

[17]:

../../../../_images/examples_high_frequency_layout_power_integrity_power_integrity_36_47.png

../../../../_images/examples_high_frequency_layout_power_integrity_power_integrity_36_48.png

Release AEDT#

[18]:

h3d.save_project()
h3d.release_desktop()
# Wait 3 seconds to allow AEDT to shut down before cleaning the temporary directory.
time.sleep(3)

PyAEDT INFO: Project ANSYS-HSD_V1 Saved correctly

INFO:Global:Project ANSYS-HSD_V1 Saved correctly

PyAEDT INFO: Desktop has been released and closed.

INFO:Global:Desktop has been released and closed.

Clean up#

All project files are saved in the folder temp_folder.name. If you’ve run this example as a Jupyter notebook, you can retrieve those project files. The following cell removes all temporary files, including the project folder.

[19]:

temp_folder.cleanup()

Download this example

Download this example as a Jupyter Notebook or as a Python script.
