HFSS to SBR+ time animation#

This example shows how to use PyAEDT to create an SBR+ time animation and save it to a GIF file. This example works only on CPython.

Keywords: HFSS, SBR+, time domain, IFFT.

Perform imports and define constants#

Perform required imports.

[1]:

import os
import tempfile
import time

[2]:

from ansys.aedt.core import Hfss, downloads

Define constants.

[3]:

AEDT_VERSION = "2024.2"
NUM_CORES = 4
NG_MODE = False  # Open AEDT UI when it is launched.

Create temporary directory#

Create a temporary directory where downloaded data or dumped data can be stored. If you’d like to retrieve the project data for subsequent use, the temporary folder name is given by temp_folder.name.

[4]:

temp_folder = tempfile.TemporaryDirectory(suffix=".ansys")

Download project#

[5]:

project_file = downloads.download_sbr_time(destination=temp_folder.name)

Launch HFSS and analyze#

[6]:

hfss = Hfss(
    project=project_file,
    version=AEDT_VERSION,
    non_graphical=NG_MODE,
    new_desktop=True,
)

PyAEDT INFO: Parsing C:\Users\ansys\AppData\Local\Temp\tmpu0rysvj0.ansys\sbr\poc_scat_small.aedt.
PyAEDT INFO: Python version 3.10.11 (tags/v3.10.11:7d4cc5a, Apr  5 2023, 00:38:17) [MSC v.1929 64 bit (AMD64)]
PyAEDT INFO: PyAEDT version 0.12.dev0.
PyAEDT INFO: Initializing new Desktop session.
PyAEDT INFO: Log on console is enabled.
PyAEDT INFO: Log on file C:\Users\ansys\AppData\Local\Temp\pyaedt_ansys_b03559fb-a6e1-4317-bc30-b2c623141f0a.log is enabled.
PyAEDT INFO: Log on AEDT is enabled.
PyAEDT INFO: Debug logger is disabled. PyAEDT methods will not be logged.
PyAEDT INFO: Launching PyAEDT with gRPC plugin.
PyAEDT INFO: New AEDT session is starting on gRPC port 59469
PyAEDT INFO: File C:\Users\ansys\AppData\Local\Temp\tmpu0rysvj0.ansys\sbr\poc_scat_small.aedt correctly loaded. Elapsed time: 0m 0sec
PyAEDT INFO: AEDT installation Path C:\Program Files\AnsysEM\v242\Win64
PyAEDT INFO: Ansoft.ElectronicsDesktop.2024.2 version started with process ID 2468.
PyAEDT INFO: Project poc_scat_small has been opened.
PyAEDT INFO: Active Design set to HFSSDesign1
PyAEDT INFO: Aedt Objects correctly read

[7]:

hfss.analyze(cores=NUM_CORES)

PyAEDT INFO: Key Desktop/ActiveDSOConfigurations/HFSS correctly changed.
PyAEDT INFO: Solving all design setups.
PyAEDT INFO: Key Desktop/ActiveDSOConfigurations/HFSS correctly changed.
PyAEDT INFO: Design setup None solved correctly in 0.0h 0.0m 47.0s

[7]:

True

Get solution data#

Get solution data. After the simulation is performed, you can load solutions in the solution_data object.

[8]:

solution_data = hfss.post.get_solution_data(
    expressions=["NearEX", "NearEY", "NearEZ"],
    variations={"_u": ["All"], "_v": ["All"], "Freq": ["All"]},
    context="Near_Field",
    report_category="Near Fields",
)

PyAEDT INFO: Modeler class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: PostProcessor class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: Post class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: Solution Data Correctly Loaded.

Compute IFFT#

Compute IFFT (Inverse Fast Fourier Transform).

[9]:

t_matrix = solution_data.ifft("NearE", window=True)

Export IFFT to CSV file#

Export IFFT to a CSV file.

[10]:

frames_list_file = solution_data.ifft_to_file(
    coord_system_center=[-0.15, 0, 0],
    db_val=True,
    csv_path=os.path.join(hfss.working_directory, "csv"),
)

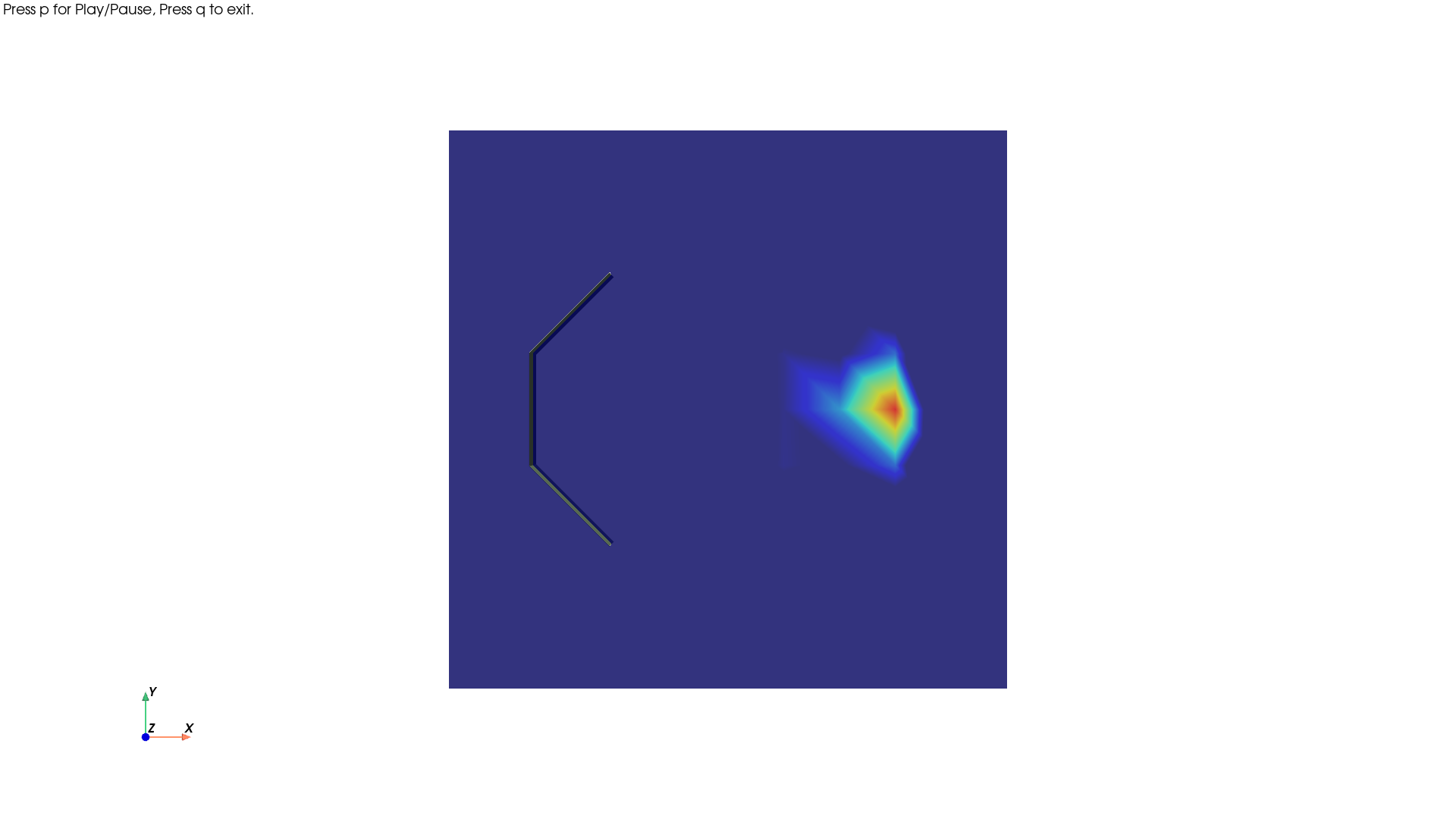

Plot scene#

Plot the scene to create the time plot animation

[11]:

hfss.post.plot_scene(
    frames=frames_list_file,
    gif_path=os.path.join(hfss.working_directory, "animation.gif"),
    norm_index=15,
    dy_rng=35,
    show=False,
    view="xy",
    zoom=1,
)

C:\actions-runner\_work\pyaedt-examples\pyaedt-examples\.venv\lib\site-packages\pyvista\jupyter\notebook.py:37: UserWarning: Failed to use notebook backend:

No module named 'trame'

Falling back to a static output.
  warnings.warn(

../../../../_images/examples_high_frequency_antenna_large_scenarios_time_domain_20_1.png

Release AEDT#

Release AEDT and close the example.

[12]:

hfss.save_project()
hfss.release_desktop()
# Wait 3 seconds to allow AEDT to shut down before cleaning the temporary directory.
time.sleep(3)

PyAEDT INFO: Project poc_scat_small Saved correctly
PyAEDT INFO: Desktop has been released and closed.

Clean up#

All project files are saved in the folder temp_folder.name. If you’ve run this example as a Jupyter notebook, you can retrieve those project files. The following cell removes all temporary files, including the project folder.

[13]:

temp_folder.cleanup()
